3G 5G 6G Ozone Generator Parts Ceramic Ozone Tube With Low Working Voltage
3G 5G 6G Ozone Generator Parts Ceramic Ozone Tube With Low Working Voltage
1.Details:

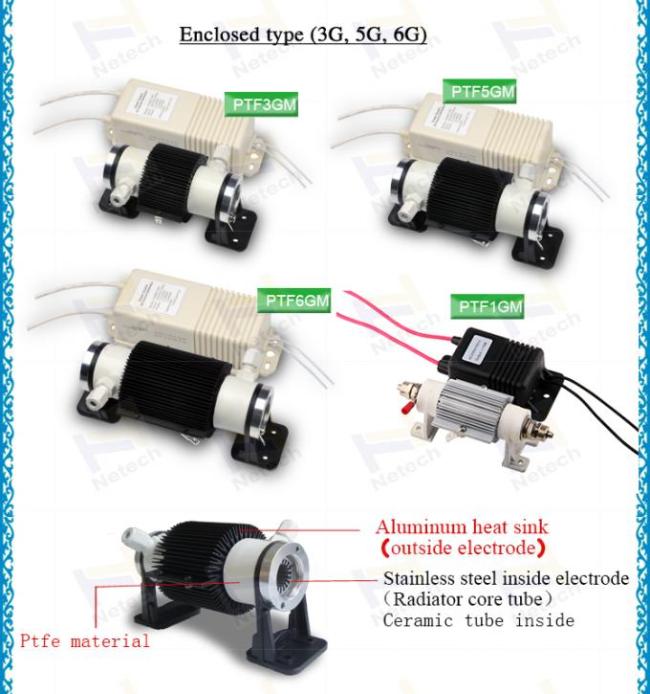

Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.
2.Features:
1).Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around.30~86 Mg/L, which is much higher than conventional products.
2).Domestic product-got domestic in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3).Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4). Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
3.Specifications:

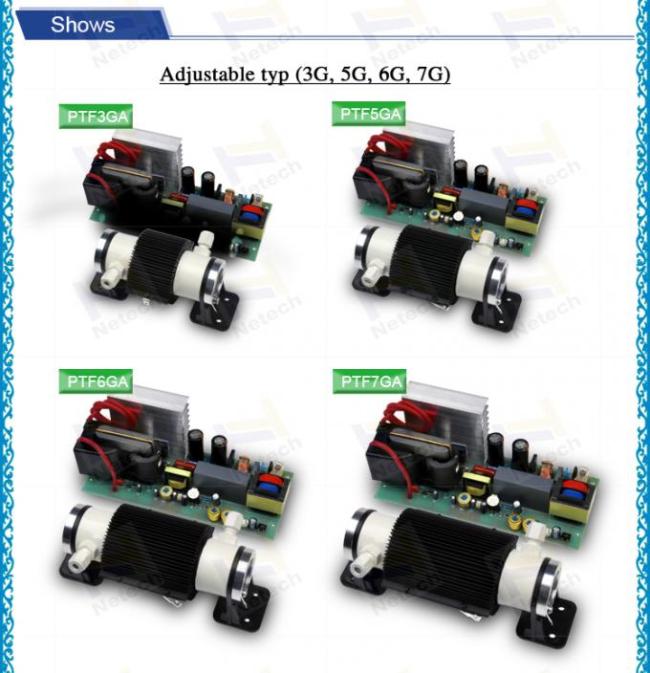

CH - PTF1G ~3G
| Item | Unit | CH -PTF | ||||
| 1G (12V) | 1G (220V) | 1G (110V) | 3GM | 3GA | ||
| Ambient temperature | ℃ | 21.6 | 25 | 23.6 | 21 | |
| Ambient humidity | % | 40 | 50 | 21.6 | 40 | |
| Power | W | ≤14.4 | ≤15 | ≤15 | ≤50 | ≤80 |
| Oxygen feed flow rate | LPM | 0.3~0.5 | 0.3~1 | 0.3~1 | 0.5-1 | |
| Ozone concentration | Mg/L | 49~40 | 49~30 | 49~30 | 81.6-49.2 | |
| Ozone output | G/Hr | 0.88~1.2 | 0.88~1.8 | 2.4-2.95 | ||
| Ozone output adjustable range | % | / | / | 20~100 | ||
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Cooling way | / | Air cooling | ||||
| Diameter of cooling fan | mm | 50*50 | 50*50 | 50*50 | 120 | |
| Diameter of gas inlet/outlet | mm | EDФ6 | ||||
| Power supply dimensions | mm | 105*57*50 | 96*47*32 | 96*47*32 | 153×60×53 | 201×86×83 |
| ozone tube dimensions | mm | 125*50*50 | 165×90*90 | |||
| Ozone tube weight | Kg | 0.2 | 0.5 | |||
| Power supply weight | Kg | 0.15 | 0.59 | 0.76 | ||
CH-PTF5G ~7G
| Item | Unit | CH-PTF | ||||
| 5GM | 5GA | 6GM | 6GA | 7GA | ||
| Ambient temperature | ℃ | 21 | 21 | 26 | 26 | |
| Ambient humidity | % | 40 | 49 | 49 | ||
| Power | W | ≤65 | ≤80 | ≤80 | ≤85 | ≤95 |
| Oxygen feed flow rate | LPM | 0.5-2 | 1~3 | 1~3 | ||
| Ozone concentration | Mg/L | 72~48 | 64.6~36.7 | 70~41.2 | ||
| Ozone output | G/Hr | 2.16~4.76 | 3.9~6.6 | 4.20~7.4 | ||
| Ozone output adjustable range | % | / | 20~100 | / | 20~100 | 20~100 |
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Cooling way | / | Air cooling | ||||
| Diameter of cooling fan | mm | 150 | ||||
| Diameter of gas inlet/outlet | mm | EDФ6 | ||||
| Power supply dimensions | mm | 177*66*53 | 201*86*83 | 177*66*53 | 201*86*83 | 201*86*83 |
| ozone tube dimensions | mm | 185*90*90 | 200*90*90 | 212*90*90 | ||
| Ozone tube weight | Kg | 0.53 | 0.56 | 0.65 | ||
| Power supply weight | Kg | 0.59 | 0.76 | 0.59 | 0.76 | 1.1 |
