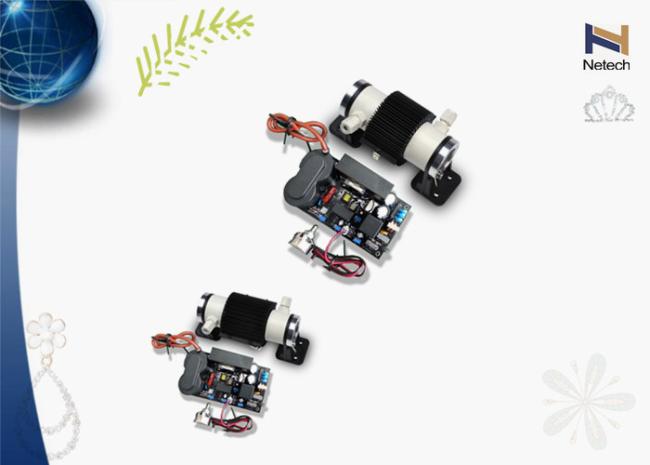

Air Cooling Ozone Generator Parts 3000mg/Hr Ceramic Tube DC12V 24V 110V 220V
Air cooling Ozone Generator Parts 3000mg/hr Ceramic tube DC12V 24V 110V 220V
Advantage:
Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.
Application:
Washrooms are often commonly overlooked when it comes to keeping a healthy and sanitized environment for schoolchildren. Because the humidity here is mostly damp, they become hotspots for germs and bacteria.
Ozone for washrooms:
Using Ozone in washrooms can significantly reduce unwanted odors and different types of germs lurking on surfaces such as taps and toilet seats. To enhance the cleaning process, it is recommended to use Ozone along with normal cleaning procedures. Our ozone generator can seep into virtually all crevices that are impossible to reach with manual cleaning.
Specification:
| Item | Unit | CH-PTF | |||||
| 3GA-1 (12V,24V) | 3GA-1 (220V) | 3GA-1 (110V) | 5GA-1 (12V,24V) | 5GA-1 (220V) | 5GA-1 (110V) | ||
| Ambient temperature | ℃ | 21 | 21 | ||||
| Ambient humidity | % | 40 | 40 | ||||
| Power | W(±10%) | 50 | 55 | ||||
| Working frequency | KHz (±10%) | 15.9 | 16 | ||||
| Working voltage | KV(±10%) | 2.8 | 3 | ||||
| Oxygen feed flow rate | LPM | 0.5-1 | 0.5-2.5 | ||||
| Ozone concentration | Mg/L | 70-49 | 72-34 | ||||
| Ozone output | G/Hr | 2.1-2.9 | 2.2-5.1 | ||||
| Ozone output adjustable range | % | 20~100 | 20~100 | ||||
| Line power supply | V/Hz | 12V 24V 110/60 220/50 | |||||
| Cooling way | / | Air cooling | |||||
| Cooling fan | / | 150 | |||||
| Diameter of cooling fan | mm | 120 | 120 | ||||
| Diameter of gas inlet/outlet | mm | EDФ6 | |||||
| Power supply dimensions | mm | 158*75*68 | 158*75*68 | ||||
| ozone tube dimensions | mm | 165*95*93 | 185*95*93 | ||||
| Ozone tube weight | Kg | 0.55 | 0.66 | ||||
| Power supply weight | Kg | 0.6 | 0.6 | ||||
