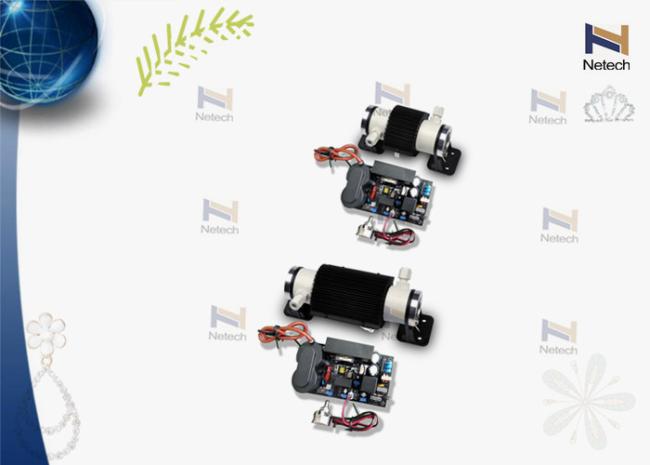

Adjustable Ozone Generator Parts 12V 24V 110V 220V Ceramic Tube For Air Water Purifier

7g Ozone Generator Parts 12V 24V 110V 220V Ceramic Tube For Air Water Purifier

Some studies have shown that Ozone is effective in eradicating ethylene gas produced by some fruits during ripening, thus delaying the ripening process and extending the storage life of the produce held in the same storage area. The ozone tube is important part in ozone generator.

Netech carries a range of Ozone generators designed for this purpose, offering cost-efficient solutions to address the storage requirements and needs of small and large retailer.

Ozone Benefits:

Minimize the use of chemicals (except for pH balancing)

Destroys all types of micro-organisms instantly

Minimizes condenser fouling

Removes existing calcium carbonate scale by destroying the biomass glue bonding agent

Low maintenance costs

The most environmentally friendly oxidant

No persistent chemicals or cleanants in bleed - ozone breaks down to oxygen

Reduces the corrosion rate of metals, including copper heat exchangers

Saves on energy costs by increasing the heat transfer efficiency of the chiller

Advantage:

1.Extremely low rate of ozone decay & high ozone concentration.

2.Domestic product-got domestic in 2008.

3.Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.

4.Low working voltage

5.Small in size.

6.Easy to maintain and install

Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.

Specification:

   CH-PTF6GA-1 ~7GA-1:


Item	Unit	CH-PTF
		6GA-1 (12V,24V)	6GA-1 (220V)	6GA-1 (110V)		7GA-1 (12V,24V)	7GA-1 (220V)	7GA-1 (110V)
Ambient temperature	℃	26				26
Ambient humidity	%	49				49
Power	W(±10%)	80				90
Working frequency	KHz (±10%)	22.1				17.8
Working voltage	KV(±10%)	2.7				2.6
Oxygen feed flow rate	LPM	1~3				1~3
Ozone concentration	Mg/L	63-34				71-39
Ozone output	G/Hr	3.7-6.1				4.2-7
Ozone output adjustable range	%	20~100				20~100
Line power supply	V/Hz	M:AC220V A:DC12V/DC24V/ AC220V/AC110V
Cooling way	/	Air cooling
Cooling fan	/	150
Diameter of cooling fan	mm	150
Diameter of gas inlet/outlet	mm	EDФ6
Power supply dimensions	mm	158*75*68				158*75*68
ozone tube dimensions	mm	200*95*93			212*95*93
Ozone tube weight	Kg	0.75			0.82
Power supply weight	Kg	0.6				0.6
