10L Industrial PSA Oxygen Machine Oxygen Concentrator Spare Parts Stable
10L industrial PSA oxygen machine oxygen concentrator spare parts
Quick Detail
oxygen generator concentrator
1.About 90%±3% oxygen concentration
2. Stable oxygen output,Durable
3. Each tower working independently
12 Towers Oxygen Concentrator
1. ed products
NT-OX series molecular sieve is an air separation plant which has already obtained domestic .
2. Rational construction
Modular construction is the main points of our molecular sieve. Through the different combination of oxygen units, the oxygen output can be from 1 LPM to 160 LPM, even higher.
3.Easy to control
Each unit can be work independently, according to the different oxygen output requirement. And free control for the different unit combinations. So that, it can be suitable used for the standardization of products. Meanwhile, maintenance will be more convenient.
4.The oxygen output is stable and continuously
5.Low-pressure oxygen production working pressure 1.5-2 Bar.
6. Working Voltage 110V/220V is available
Sepcifications:
| Item | Unit | NTOX3AL | NTOX5AL | NTOX7AL | NTOX10AL | NTOX15AL |
| Oxygen output | LPM | 3 | 5 | 7.5 | 10 | 15 |
| Oxygen concentration | % | 90%±3% | 90%±3% | 90%±3% | 90%±3% | 90%±3% |
| Air flow rate | LPM | 36-45 | 60-75 | 90-115 | 90-115 | 180-200 |
| Pressure(inlet) | Mpa | 0.14-0.18 | 0.14-0.2 | 0.15-0.21 | 0.18-0.25 | 0.35 |
| Pressure(outlet) | Mpa | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 | 0.06-0.08 |
| Temperature | ℃ | indoor temperature | ||||
| Relative humidity | % | ≤ 70%±10% | ||||
| Noise | Db | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |

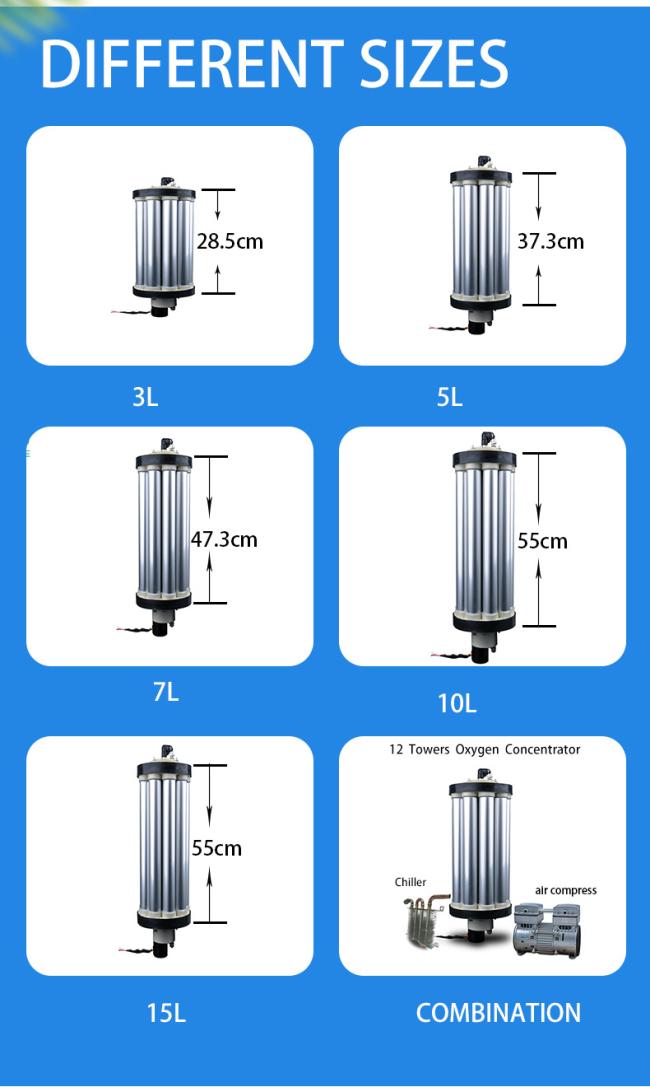

| Dimension | mm | Ф200×310 | Ф200×430 | Ф200×500 | Ф200×560 | Ф200×880 |
| Net weight | kg | 5.5 | 7 | 8 | 11 | 12.5 |
Remark:

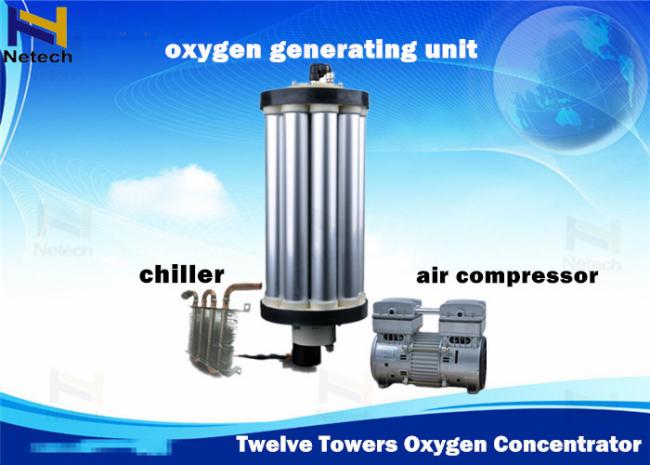

1. One set including oxygen generating unit, air compressor, and chiller. (It also can be sold separately)
2. NTOX15AL-2 comes with 2 units air compressors,2 chiller.
