40-100g Large Aquaculture Ozone Generator / Water clean Machine
Features:
1. With built-in oxygen system, carbon steel sprayed with plastic or SS housing complete ozone generator
2. With built-in water cooling enamel ozone tube, high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
3. Adjustable ozone range: 20%--100%, it can working automatic
4. Compact assembly,Movable with Wheels
5. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Control panel:
Ozone output adjuster, Voltmeter, Ampmeter, Timer, Cooling water temperature indicator, Ozone Ampmeter, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm

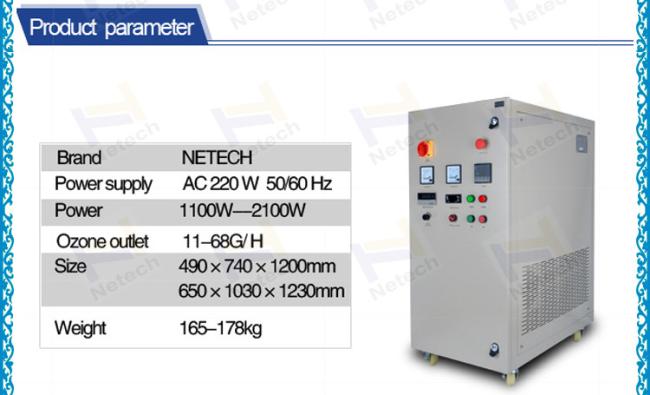

Specifications
| Item | Unit | NT-Y40G | NT-Y50G | NT-Y60G | NT-Y100G |
| Oxygen flow rate | LPM | 5~15 | 8~18 | 20 | 16-32 |
| Ozone concentration | Mg/L | 90~56 | 90~60 | 55-59 | 90~58 |
| Ozone output | G/Hr | 27~50 | 43~64 | 66-70.8 | 86~111 |
| Power | Kw | ≤1.62 | ≤1.85 | ≤2.80 | 3.5 |
| Fuse | A | 15 | 20 | 20 | 20 |
| Cooling water flow | LPM | 48 | |||
| Size | cm | 65*103*124 | 60*85*131 | 67*110*136 | |
2. Net weight will be 10% different for different plug
Question and answer
♦ Does the ozone generator work efficiently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide.It can kill escherichia coli,
bacteria efficiently and resolve the harmful material in a short time.
And it won't produce second polluction.
