3 / 4 inch Water Mixing Devices Injector Ozone Subsidiary Facilities PVDF Venturi
Ozone Water Mixing Device PVDF Venturi Other Ozone Generator Subsidiary Facilities
Quick Detail
| Item |
Gas and water mixing device |
| Material | PVDF(ozone resistance material) |
| Model | Depends on the water flow |
| MOQ | 1 piece |
| Usage | Water treatment |
| Application | home drinking water,swimming pool,wastewater,etc |
| Warranty | 12 months |
Description:

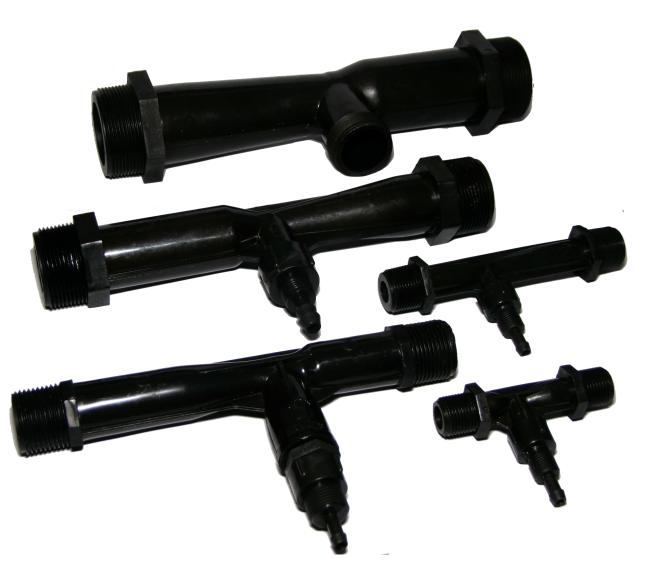

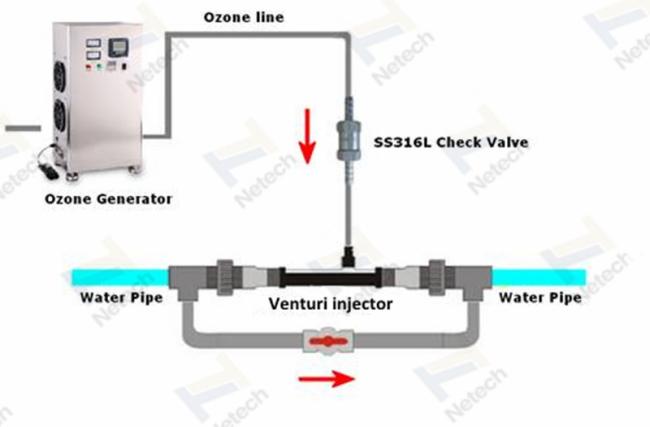

Venturi is designed to be used with an ozone generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow
Specification:
| Marks | Model |
Quantity (PC) |
Size (mm) |
 |
|
| 1 | A12057 | 1 | 57 | ||
| 2 | A25100 | 1 | 100 | ||
| 3 | A32235 | 1 | 235 | ||
| 5 | A48275 | 1 | 275 | ||
| 6 | A58295 | 1 | 295 | ||
|
Model: A12057 1. Inlet & Outlet diameter 1/5'' external screw thread 2. Valve bonnet of Gas Inlet is 1/8’; 3. flexible hose is 1/4’’; 4. Length: 57 mm |
Model: A25100 1. Inlet & Outlet diameter 1/2’'external screw thread 2. Valve bonnet of Gas Inlet is 1/4’; 3. flexible hose is 1/4’’; 4. Length: 100 mm |
Model : A32235 1. Inlet & Outlet diameter 1’'external screw thread. 2. Valve bonnet of Gas Inlet is 1/2’; 3. flexible hose is 3/8’ 4. Length: 230 mm |
|
Model: A25152 1. Inlet & Outlet diameter3/4’'external screw thread 2. Valve bonnet of Gas Inlet is 1/4’; 3. flexible hose is 1/4’’; 4. Length: 152 mm |
Model: A48275
|
Model: A58295 1. Inlet & Outlet diameter 2’' screw thread 2. Valve bonnet of Gas Inlet is 1.25’; 3. flexible hose is 1/2’’; 4. Length: 295mm |
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
