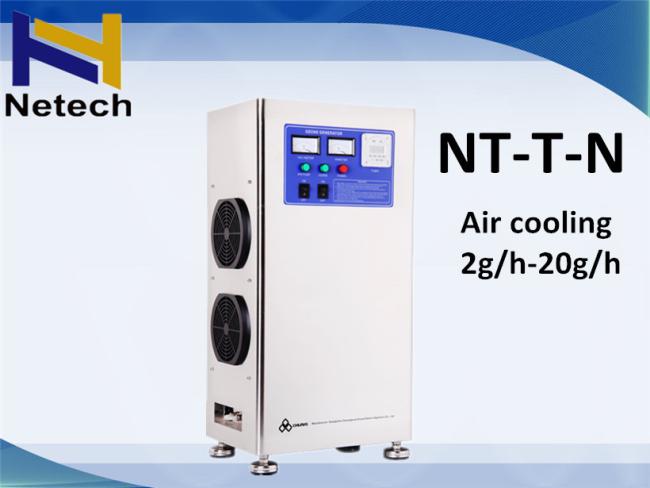

2~20G Air Cooling Ozone Machine For Clean Production Waste Water Treatment
2~20G Air cooling ozone machine for clean production waste water treatment
Applications:
1. treatment industry: clean sickroom, operating room, treatment equipment,aseptic room, etc
2. Fruits and vegetables:keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacterias ,clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacterias,clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacterias ,clean water for poultry feeding.
6. Commercial use in House,hotel,Office,KTV,Super Market,Fruit shop etc.
Air Purifier:Remove formaldehyde,benzene compounds,Smoke,Odors,Molds,Bactrias,Virus to fresh air.
Water purifier:clean production Water supply.
7. Bottle Water,Domestic Water,Well Water,Pool Water cleanion & clean
Control panel:
Voltmeter, Ampmeter, Switch, Timer,
Working light, Power light etc.
Timer: One or Two recycle working time
Features:
1. Builted in Domestic ed Product -Air cooling ceramic ozone generator
2. Builted in Automatic air dryer,Feed dryed air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.
Specification
| Item | Unit | CH-T-N | |||||||
| 2G | 3G | 5G | 6G | 10G | 15G | 20G | 30G | ||
| Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 | 3-10 |
| Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 | 51~70 |
| Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 | 12.6~30.6 |
| Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 | 1100 |
| Compressed air pressure | Mpa | 0.025 | 0.14 | ||||||
| Fuse of power supply | A | 3 | 5 | 5 | 5 | 10 | |||
| Size | cm | 36×26×61 | 40×30×77 | 40*28*101 | |||||
| Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 | 33.5 | |
Product Details
