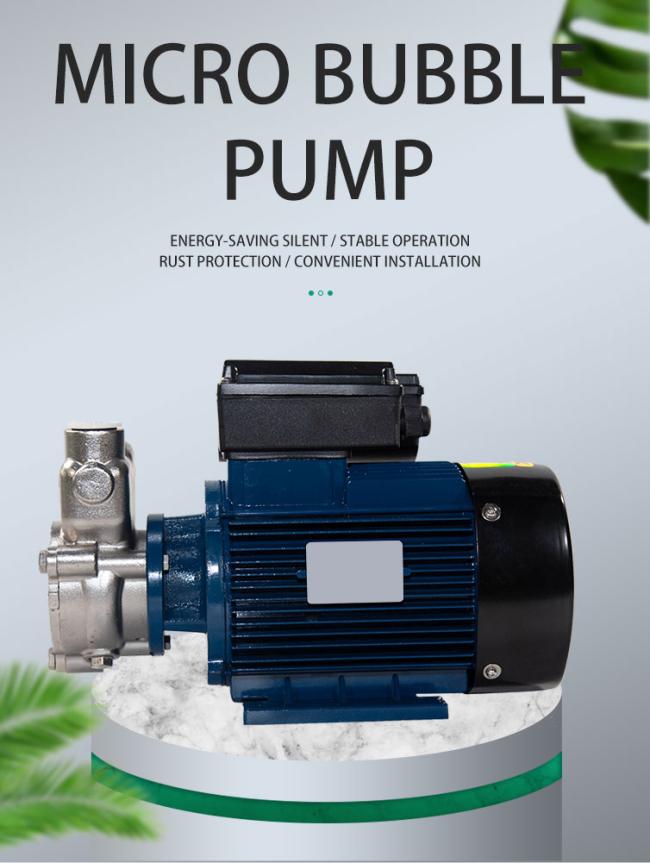

Ozone water mixing pump micro nano bubble pump
Ozone water mixing pump micro nano bubble pump
Micro bubble is a new kind of mixing technology. It can mix gas and water. The gas can be any gas, such as oxygen, ozone. The mixing efficiency is more than 90%
The micro/nano bubble generator is using a simple method to solve micro bubbles in a liquid.
This bubble generator uses the properties of the vortex pump turbine and effectively solves gas with a liquid or two liquids, and adding it under pressure into a process.
A device that can be useful for efficient mixing and dissolving of the gaseous products in fluids. It is for this purpose equipped with a special impeller and can be used for continuous operation.
Specification:
| Model | Flow rate | Specification | The maximum head of delivery (m) | flow rate (L/Min;M3/h) | The flow rate of head delivery at 40M (L/min；m³/h) | Maximum temperature resistance of material (℃) |
| 20WSS04 | 1T | 380/50HZ; 0.37KW | 45M |
12L/min 0.72m³/h |
14L/min 0.84m³/h |
120℃ |
| 25WSS07 | 2T | 380/50HZ; 0.75KW | 50M |
17L/min 1.02m³/h |
25L/min 1.5m³/h |
|
| 32WSS15 | 3-4T |
380/50HZ 1.5KW |
60m |
35L/min 2.1m³/h |
52L/min 3.12m³/h |
|
| 40WSS22 | 5-6T |
380/50HZ 2.2KW |
50m |
82L/min 4.92m³/h |
102L/min 6.12m³/h |
|
| 50WSS75 | 10-15T |
380/50HZ 7.5KW |
80m |
50L/min 3.0m³/h |
150L/min 9m³/h |
180℃ |
| 65WSS110 | 25-30T |
380/50HZ 11KW |
60m |
300L/min 18m³/h |
500L/min 30m³/h |
|
| 80WSS220 | 45-50T |
380/50HZ 22KW |
60m |
650L/min 39m³/h |
850L/min 51m³/h |
Remark: 1T/2T voltage can custom made in 110V/60hz ,220V/50hz or 220V/60hz.
