Lead-Free Reflow Oven YSL-622 5400*1400*1500 Weight 2200KG Length Of Preheating Zones 3030mm

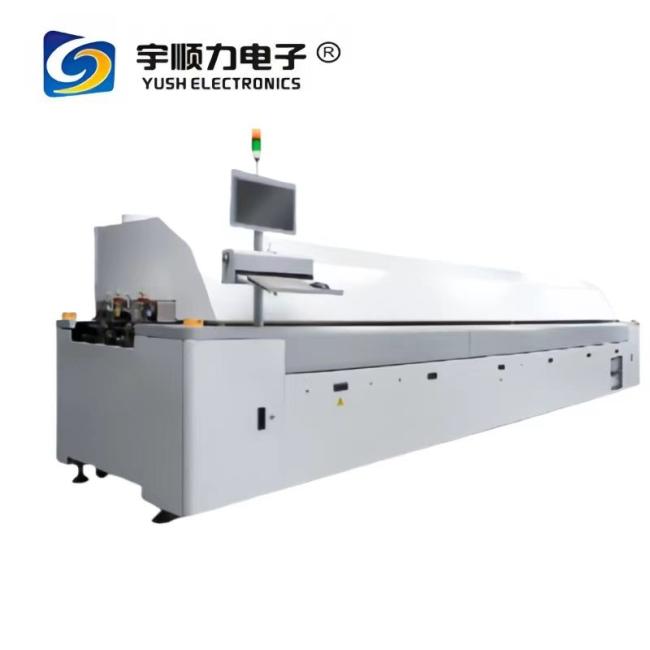

Lead-Free Reflow Oven YSL-622
Introduce of Reflow Oven
YSL advanced Reflow Oven, Reflow Soldering Oven, SMT reflow oven technology | 25 years SMT technology experience | professional oversea service team.
1. Control System
Computer or Instrument control, make sure machine working steadily.
2. Hot Air Heating System
Both top and bottom zones hot air heating, good heater compensatory,High thermal efficiency, energy saving, speedy heating, suitable for soldering components like BGA,CSP etc.Special forced hot air circulation structure makes PCB and components heat evenly, Temperature Accuracy ± 1.5 °C, room temperature settling time less than 20 minutes.
3. Cooling System
Independent cooling area ensures the low temperature when PCB comes out.
4. Transmission system
Use imported motors, speed adjuster, smoothly running, adjustable speed at 0-2000mm/min.
Specification of Reflow Oven
| Model | YSL-622 | YSL-733 | ||
| Dimension (L*W*H)mm | 5400*1400*1500 | 6250*1400*1500 | ||
| Machine Weight | Approx. 2200KG | Approx. 2400KG | ||
| Quantity of preheating zones | Up6/Bottom6 | Up7/Bottom7 | ||
| Length of preheating zones | 3030mm | 3730mm | ||
| Quantity of cooling zones | 2 | 3 | ||
| Control System | PLC+Computer | PLC+Computer | ||
| Transmission Agent | Chain + Mesh | Chain + Mesh | ||
| Width,sigle conveyor/without CBS | Standard:50mm-460mm, | |||
| Option:50-686mm other Width on request | ||||
| Operating capacity | 10kw | 12kw | ||
| Conveyor Height | 900+/-30mm | 900+/-30mm | ||
| Model | YSL-A600 | YSL-A600D | YSL-A800 | YSL-A800D |
| Dimension (L*W*H)mm | 3400x800x1350 | 4150x850x1350 | ||
| Weight | Approx.739KG | Approx.850KG | ||
| Number Of Heating Zones | Top6/Bottom6 | Top8/Bottom8 | ||
| Length Of Heating Zones | 2300mm | 2600mm | ||
| Power For Warm Up | 12kw | 15kw | ||
| Power Consumption | 5kw | 6kw | ||
| Transmission Agent | Mesh | Mesh+Rail | Mesh | Mesh+Rail |
| Fixed Rail Side | N/A | Front (Option:Rear) | N/A | Front (Option:Rear) |
| Control System | Instrument | PLC+Computer | Instrument | PLC+Computer |
YUSH Electronic Technology Co.,Ltd was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
