High Efficiency YSL - 600 Full Pneumatic Steel Mesh Cleaning Machine L1000*W700*H1730（ Mm ）
High Efficiency YSL - 600 Full pneumatic steel mesh cleaning machine L1000*W700*H1730( mm )
Application field
Technical specification parameter
|
Applicable steel mesh size |
L750 × W750 × H40(mm) 【 Extra large size to order】 |
|
Overall dimension |
L1000*W700*H1730( mm ) |
|
Maximum volume of liquid tank |
50L |
|
Optimal liquid usage |
40L |
|
Cleaning mode |
360° Rotary double isobaric injection High pressure injection (wash + blow dry) |
|
Cleaning time |
2-4min |
|
Drying time |
2-5min |
|
External air source |
0.4～ 0.6 (Mpa) |
|
Air consumption |
400 ～600( L/Min) |
|
Exhaust port size |
Φ 125× H25(mm) |
|
Filtration system (first level) |
Primary filter element filtration:10㎛ (Filter impurities and labels) |
|
Filtration system (secondary) |
Two-stage filter element filtration:5㎛ (Filter solder paste and rosin particles) |
|
Filtration system (three stages) |
Three-stage filter element filtration:1㎛ (Filter solder paste and rosin particles) |
|
Machine weight |
240KG |
Product characteristics
- All stainless steel body: beautiful, wear resistance, corrosion resistance, in line with environmental requirements and standards;
- Full pneumatic operation, no electricity, no fire and other safety risks;
- Side wall air intake blow-drying design;
- User-friendly design: one-button operation and automatic filling and draining function, easy
to operate; - Replaceable modular controller and quick-plug design make maintenance easy and convenient.

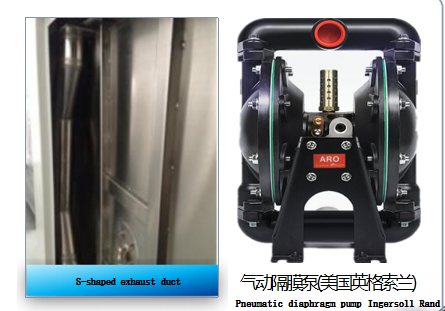

- Two-stage filtration system, low exhaust and S-shaped exhaust duct design: solvent
recycling, low liquid consumption; Ø High density isobaric double rotating cleaning nozzle, strong cleaning power, does not damage the tension of steel mesh. - Systematic integration of global quality control devices to ensure excellent quality, stable performance and long service life;
![]()

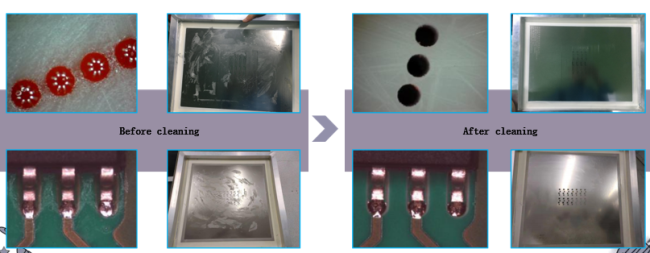

Compaison of cleaning cases

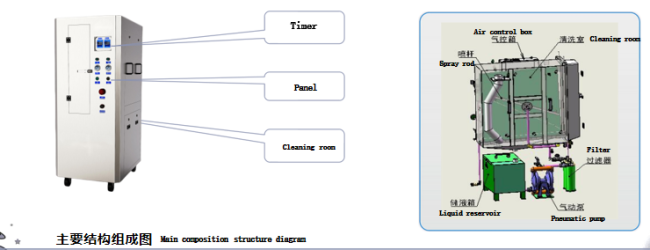

Product structure and function
