110/220V 60W 420X 280 X 400mm [YSVC-1S] V-CUT Banding Transportation Machine,PCB Depaneling machine

YSVC-1S

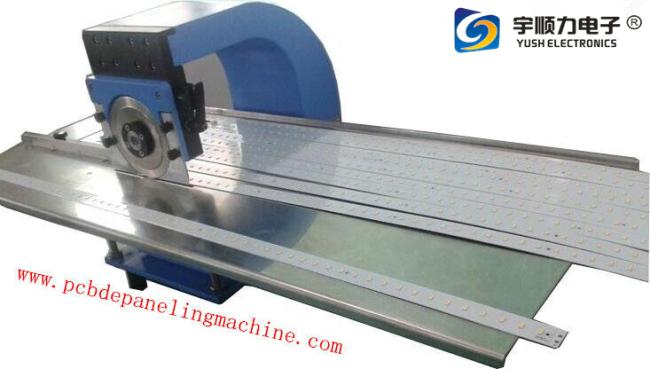

PCB Depaneling machine
1.Max. length:unlimited
2.The price is very economical
3.Safety use and easy operation
4.Blade can be re-grinded to use

PCB Depaneling machine specifications:

Max. length unlimited
thickness:      1.0-3.5mm
Blade amount :     up and down 2 circular blades
mode :     down circular blade with motor-driven
speed :      0~400mm/s
Voltage and Power :     110/220V   60W
size:                420X 280 X 400mm
weight :         25Kg
workbench :     optional(can make different length according to your board)

YuVC-1S  motor-driven PCB Depaneling machine  features :

1.Guide can be adjusted vertically to suit different PCB thickness.
2.Clearance between the circular blades can be precisely adjusted with the knob.
3.Upper and lower circular blades can be re-used after regrinding.
4.Shape and sizes of the circular blades can be made according to customer's specifications.

1. High efficiency partitioning board, extremely labor-saving, daily output can reach more than 100,000 pcs;

2. Fully automatic production can be realized by butting up and down board equipment.

3. Perfectly control the deformations of parting boards, which conform to the copper lamp board or COB board with discontinuous products.

4. Simple training can grasp the operation method; calibration fine-tuning handle to adjust knife spacing, quick start, ordinary staff can learn through simple training;

5. Operation safety, equipped with door-opening protection device to ensure safe production;

6. Unique new cutter, durability increased by 1.5-2 times.
