100W PCB Depaneling Router For Cutting / Separator Printed Circuit Board
Price:
28000-30000 USA
MOQ:
1set/sets
Delivery Time:
3-7days
Brand:
YUSH
Product Description
YSVC-650-

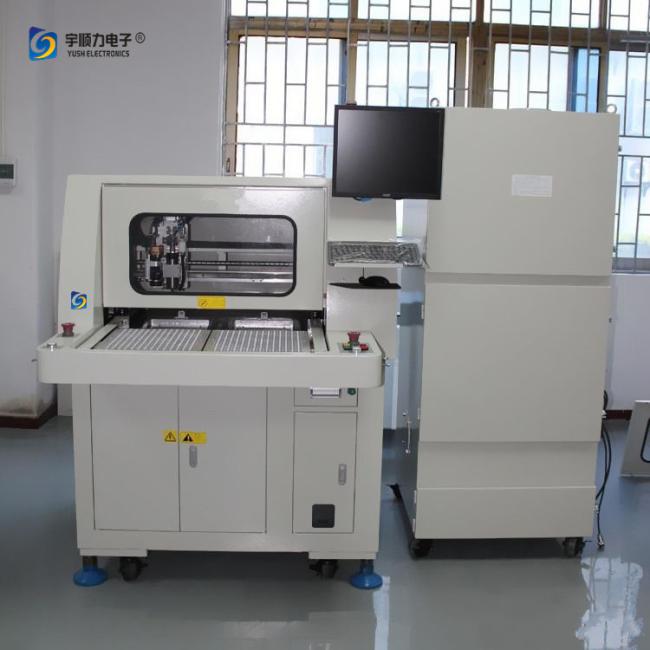

PCB Router Machine for Cutting or Separator Printed Circuit board
specifications
| I. Hardware | |
| System models / types | Windows XP Professional |
| Overall | |
| FootPrint (LxWxH) | 800mm*850mm*1700mm |
| Weight (Approximate) | 150KG |
| Adjustable machine footings (for height) | 60~110mm |
| Manipulator | |
| Manipulator Motor | Panasonic MINAS A5 series |
| Manipulator Repeatability | 0.001mm |
| Axis configuration | |
| Maximum Axis Travel (X,Y,Z) | 400mm*650mm*50mm |
| Work station | |
| Board Positioning | Fixture positioning, thimble universal positioning, vision correction |
| Loading/Unloading | manual |
| Routing Range | 320mm*320mm |
| Panel Thickness | 3mm |
| Fixturing | |
| Rigid Fixturing | Universal thimble & anti-static fixture |
| Top Clamp | Using hole positioning |
| Spindle Motor | |
| Power | 100W |
| Max. speed | 60000rpm/min |
| Cooling | Natural cooling and air-cooled |
| Router bit size | 3mm*3mm |
| Tool change | Use Special wrench |
| Routing capability | |
| Max routing speed | 100mm/s |
| Repeatability | 0.02mm |
| Vacuum System | |
| Power | 0.75KW220V Single-phase motor |
| Filtration | Vertical and horizontal |
| Utilities | |
| Power | 1.5KW AC220V |
| Air supply | 4~5KG/cm2 |
feature:
1. promptly delivery. small order is welcome
2. High efficiency:It merely needs a few minutes to make a piece of PCB.
3. Safety :Enclosed Work Area ;Door Interlock Sensors ;Emergency Stop Button
4. we can offer you the high quality & reasonable price
5. we can do the designs according to the customers' requirement
6. we can offer your a good after-sell service .
7. we have strong professinal design team
