0.50 - 0.70 Mpa Working Pressure PCB Depaneling Machine 130 mm 200 mm Max cutting Length
depanel pcb maestro 4m depanel meaning Router With One Day Lead Time
1. Bow waves that can occur with round knives are avoided
2. Easy adjusting of distance between knives
3. Separates boards up to 2.5mmthick
4. Shears boards safely with parts as close as0.5mmto the score line, including ceramic capacitors
5. Operator foolproof! Panels cannot be inserted into the knives except on the score line
6. Pneumatically driven
7. Handles high components up to 70mm
Specification :
| Model | YSVC-2-130 | YSVC-2-330 |
| Max.cutting length | 130mm 200mm | 330mm |
| Outside size(L×W×H) | 500×300×440mm | 700×300×400mm |
| Cutting thickness | 0.3-3.5mm | 0.3-3.5mm |
| Working air pressure | 0.50-0.70Mpa | |
| Weight | 80 kg 100kg | 130kg |
The machine stress test image data:
PCB Board

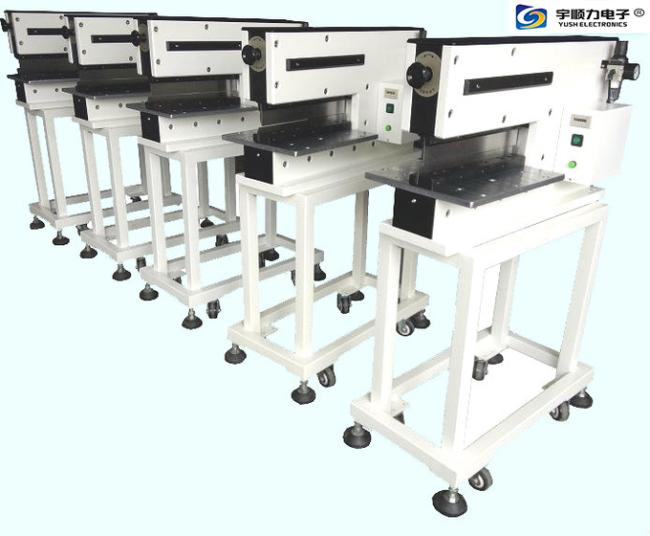

YSVC-330 YSVC-220-PCB/PCBA depaneling machine
1. Shearing process without vibrations due to pneumatic drive unit
2. Thin PCB even to 0.3mm can be sheared safely
3. Easy maintenance and operation
