1.2M led Aluminum PCB Depaneling / Multi-blades LED aluminum board depaneling machineYSVJ-650
1.2M led Aluminum PCB Depaneling / Multi-blades LED aluminum board depaneling machineYSVJ-650

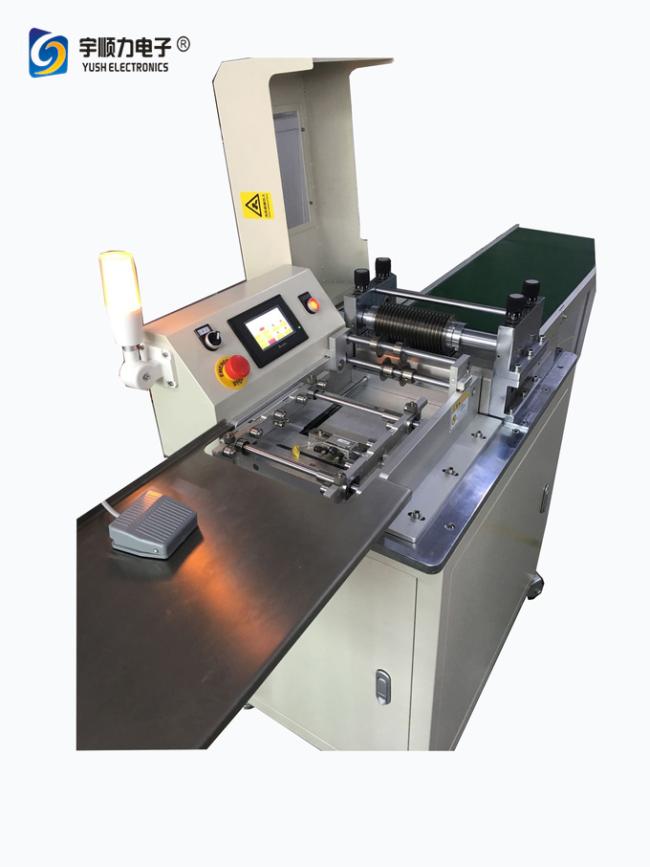

YSVJ-650 - PCB Depaneler:
Features:
● The conveying speed can be adjusted.
● The single separated PCB width is 8-20 mm. Max cutting width 300mm;
● Machine with automatic feeding system;
● Machine is equipped with safety protection device.
● Suitable cutting material of PCB :aluminum ,FR4,glass fiber.
● Equipped with SMEMA connector ,easy to connect with upstream machine
● The machine adopts the touch screen and PLC which can monitor production information.

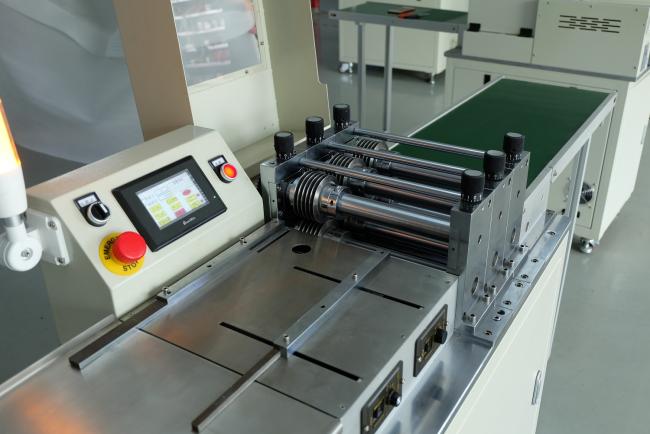

● MDS-900 is equipped with multiple sets of blades which can separate the whole light bar board one time.
● The distance between upper and lower cutter can be precisely adjusted, the separating thickness of PCB range is : 0.8MM-3.0MM.
| Model : | YSVJ-650 |
| Total Dimension : | L2160*W 850* H1050mm |
| Inlet conveying length : | 850mm |
| Vacuum Cleaner | Machine with vacuum cleaner |
| Outlet conveying length | 850mm |
| Separating blades number 20 groups of upper and lower blades , | total:40pcs |
| Maximum Cutting Length: | Unlimited |
| PCB Thickness | 0.6-5.0mm |
| Separating PCB bar number | at one time 11 LINES |
| Separting width of single | PCB 8-20MM |
| Max PCB width | 300 mm |
| Max component height | 30 mm |
| Blade material | SKD61 |
| Blade average lifespan | 1,000,000 times (1.2m long , 3mm thick PCB) |
| Voltage | 220V/50Hz or 110V |
| Machine weight | 210 kg |
| The spacing between | the blades Spacer |
| Power | 230V |
