300*160*195mm Net Weight 7.25kg Connect To HVAC Aromatherapy Essential Oil Diffuser
300*160*195mm Net Weight 7.25kg Connect To HVAC Aromatherapy Essential Oil Diffuser
Product Technical specifications:
| Voltage: | DC12V | Power: | 16W |
| Noise: | <45dba | Coverage: | 5000-15000m3 |
| Certification: | CE | Technology: | Cold-air diffusion |
| Oil capacity: | 500ml | Max Oil consumption: | 5.0 ml/h±5% |
| Color: | Black | Material: | Metal |
| Power source: | Electrical | Installation: | Connect to HVAC |
| Air Pump | Nidec Japanese Brand | 8000 hours lifespan | Stainless steel nozzle |
Brief Instruction:
VS160 aroma diffuser system is the ideal choice for perfuming a large area of space environment of business districts. It utilizes the advanced diffusion technology to atomize the plant essential oil. Then it connects ventilation equipments of central air-conditioning system to spread the fragrance to each corner of the whole space. It also has a time-adjusted cycle control, which could guarantee the customers to adjust and control the concentration of fragrance according to their own demands.
Quick Features;
| 1, metal shell,high strength and corrosion paint processing |
| 2,can set up 4 group work periods and adjust fragrance intensity by PCB controller |
| 3,Japanese long life compression pump |
| 4,6mm Connecting pipe socket |
| 5,Key |

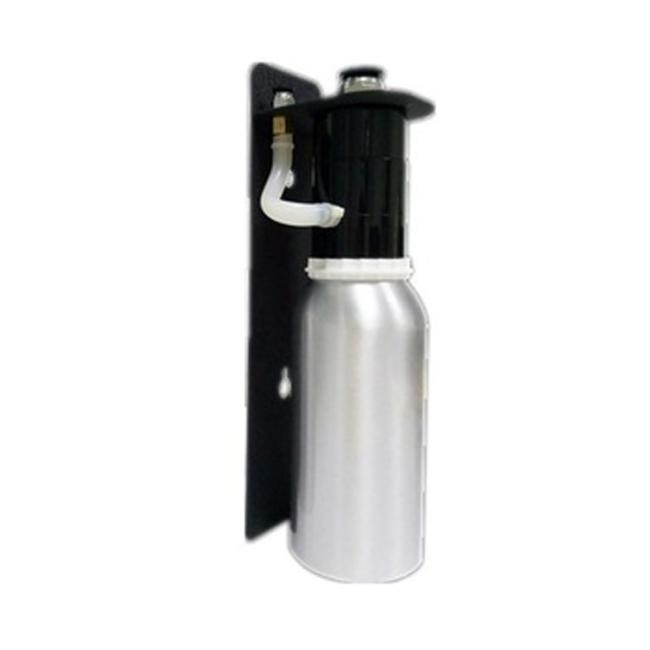

| 6,500ml AL oil bottle |
| 7,Concise style design,beauty and generous |
| 8,footpad (to absorb shock and make the machine to bestable) |
Usage instructions

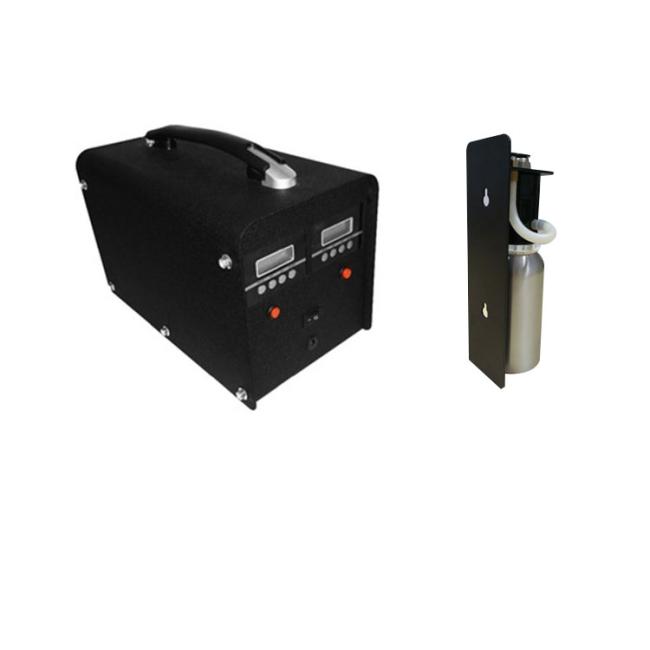

1. Aroma Diffusion System includes two parts: fragrance diffuser engine and installation accessories (air conditioner connecting pipe,plastic tube and location- plate).
2. Optionally connect to HVAC.
3. Pre-fixed work-time range.
4. Adjustable fragrance dispersing density setting.
5. Easy to install essential oil container which is inserted inside the machine.
Am I able to refill the essential oil ?
--Yes,you can refill the bottle when the essential runs out. and only essential oil and ethyl alcohol could be atomize red by our device.essential for scent, and alcohol for clean maintaining, other liquid items will do damage the equipment.
