Outdoor die casting aluminium LED Street Light Fixtures IP66 SKD Available
Price:
Negotiation
MOQ:
1pc
Delivery Time:
7-30days after final confirm
Brand:
Die Casting Man/OEM
Product Description
SKD available LED Street Light Fixtures IP66 tool free to open Outdoor Luminaire
1.Product Description:
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
The series have TUV CE ENEC CB IP66 certification and offered 5 years Warranty.
2.Specification
| Product Code | YASL-25-100M | YASL-25-100M | YASL-25-150M | YASL-25-150M | YASL-25-240M | YASL-25-240M |
| Input Wattage | 50W 60W | 100W | 120W | 150W | 200W | 240W |
| Installation Pipe Diameter | φ45/60mm | φ45/60/76mm | ||||
| Luminous Flux | 7800-9000lm | 13000-15000lm | 15600-18000lm | 19500-22500lm | 26000-30000lm | 31200-36000lm |
| Color Temperature | 2700K 3000K 4000K 5000K 5700K 6500K | |||||
| Input Voltage | AC90～305V | |||||
| Frequency Range | 50/60Hz | |||||
| Power Factor | PF≥0.95 | |||||
| color rendering index | Ra≥70 | |||||
| Temperature of Working Condition | -40～50℃ | |||||
| Humidity of Working Condition | 20%～90%RH | |||||
| LED Lifetime | 50000h | |||||
| Protectin Grade | IP66 | |||||
| Protection level | IK08 IK09 IK10 | |||||
| Installation Height | 4-8m | 6-10m | 8-12m | 8-12m | 10-14m | 10-14m |
| Net Weight | 3.8kgs | 3.8kgs | 5.7kgs | 5.7kgs | 7.2kgs | 7.2kgs |
| Gross Weight | 4.0kgs | 4.0kgs | 6.0kgs | 6.0kgs | 7.5kgs | 7.5kgs |
| Packing Size(m m) | 680*270*160 | 680*270*160 | 820*320*160 | 820*320*160 | 920*370*180 | 920*370*180 |

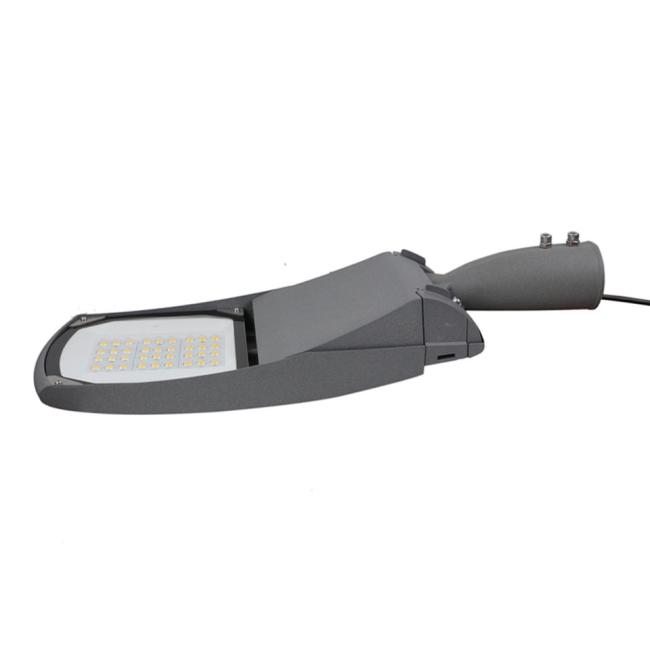

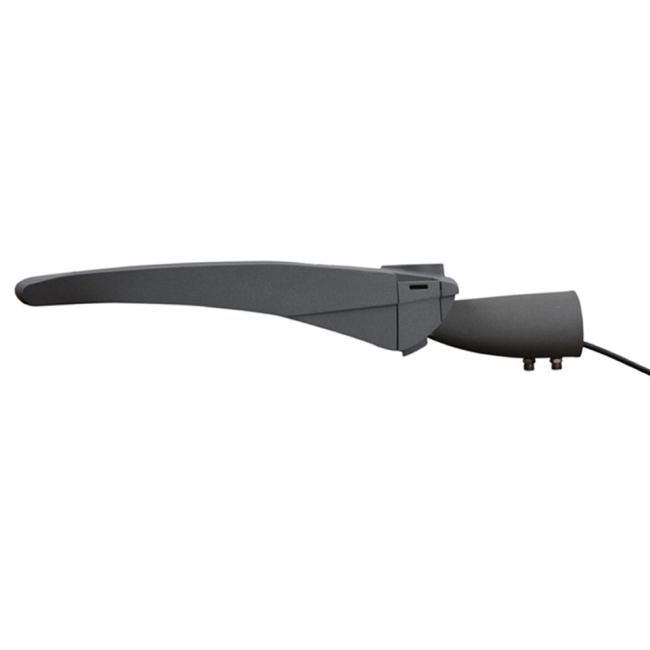

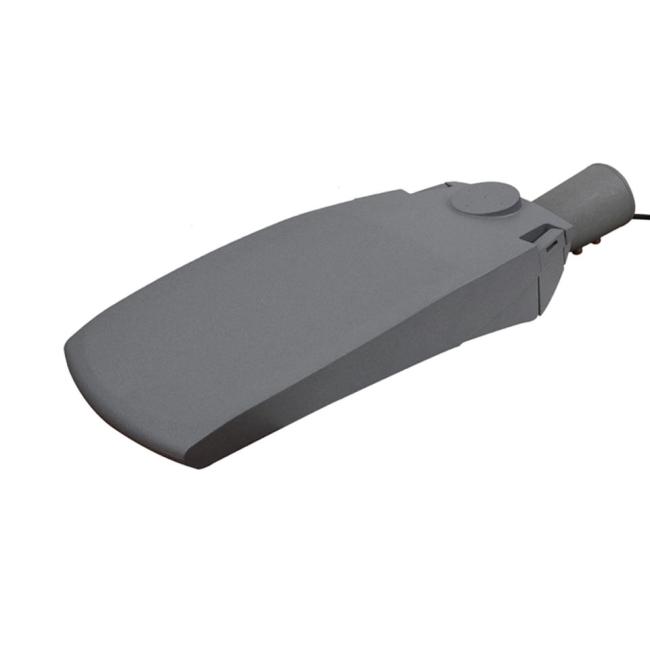

3.Detail Picture
4.Product Size
| Product Code | YASL-25-100 | YASL-25-150 | YASL-25-240 |
| L(mm) | 645 | 790 | 890 |
| W(mm) | 257 | 305 | 361 |
| H(mm) | 147 | 147 | 163 |
5.lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle -15° to +15°
