IP66 Diecasting Aluminum Led Street Light 150lm Per Watt

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 7-30 days base on order quantity

Brand: Die Casting Man

Product Description



1.Description:

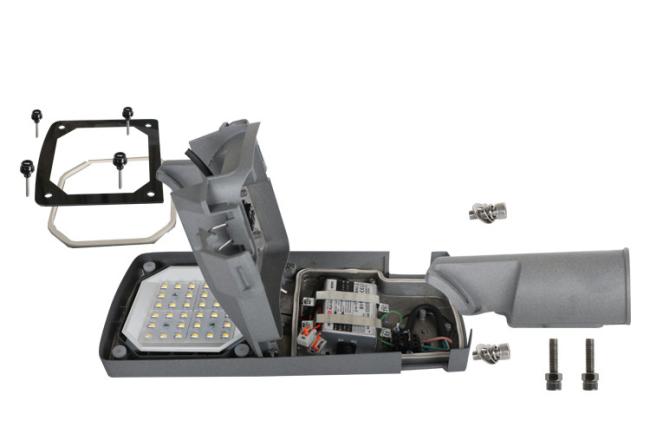

The series including Die casting housing shell, Frame , rotating bracket 60mm and 50 mm availble.silicone gasket x 2 pieces.4mm or 5mm tempered glass.gear tray or clips.stainless steel screws and export safety package

Model YASL-19 LED lamp is a sample and efficient product that significantly reduces energy,maintenance costs.

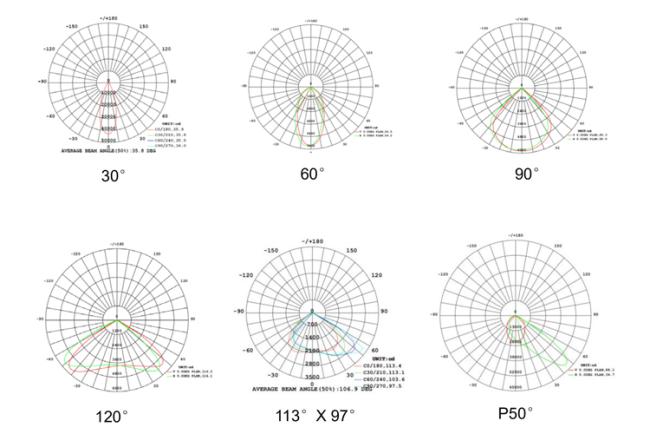

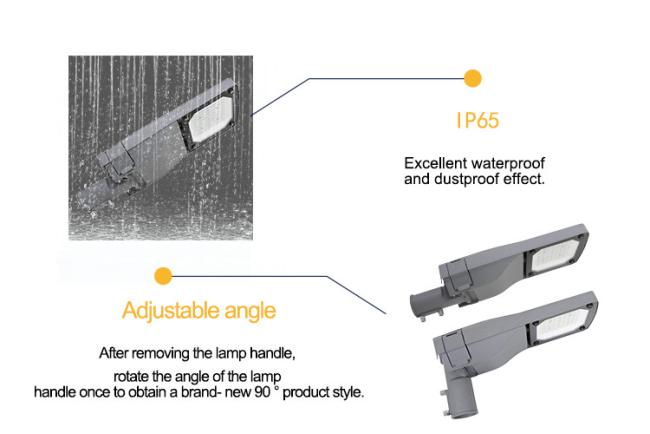

One of the features of this lamp is that it does not need tools to replace parts to upgrade it. Another feature of this lamp is the ability to install horizontally and vertically. Model YASL-19 LED light is available in four sizes and eight light distribution curves from 4500 to 27000 lumen. The YASL-19 LED lamp with an optical gain of up to 130 lumen per watt has a long life of more than 100,000 hours

2.Specification:

Product Code	YASL-19-30	YASL-19-50	YASL-19-80	YASL-19-150
Input Wattage	30W 40w	50W 60w	80W 100w	120w 150W 200w
Color Temperature	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	3300-3750 lm	5500-6250 lm	9200-10400 lm	17250-19500 lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of Working Condition	-40-50℃	-40-50℃	-40-50℃	-40-50℃
Humidity of Working Condition	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH
LEDLifetime	50000h	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66	IP66
Installation Pipe Diameter	⌀50mm 60mm	⌀60mm	⌀60mm	⌀60mm
Installation Height	4-6m	4-6m	6-10m	8-12m
Net Weight	3.0Kg	3.7Kg	6.0Kg	7.4Kg
Gross Weight	3.5Kg	4.2Kg	6.5Kg	8.0Kg
Packing Size(mm)	510×236×150	620×270×155	670×310×155	810×340×155
