IP66 SKD LED Street Light Fixtures Commercial Outdoor Luminaire
LED commercial Outdoor Luminaire IP66 light fixtures SKD available Street Lights
Description
This series is a high-performance street lighting available in four sizes.the luminaire is manufactured from high pressure die-casting aluminum.it shall have a led efficacy up to 150lm/w.our regular housing color is grey.black and silver.other color can be optional.
Specification:
| Model No | YASL-09-30 | YASL-09-50 | YASL-09-100 | YASL-09-150 |
| Power | 20w 30w 40w | 50w 60w | 80w 100w 120w | 150w 180w 200w |
| CCT | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Luminous Flux | 4200-4800lm | 6600-7500lm | 11000-12500lm | 19800-22500lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| LED lifetime | 50000h | 50000h | 50000h | 50000h |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | φ50/60mm | φ50/60mm | φ50/60mm | φ60/70mm |
| Net Weight(kgs) | 2.7 | 4.0 | 6.5 | 12.8 |
| Gross Weight(kgs) | 3.0 | 4.5 | 7.0 | 13.2 |

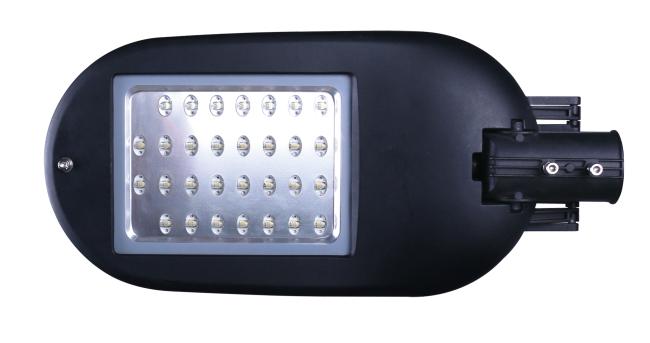

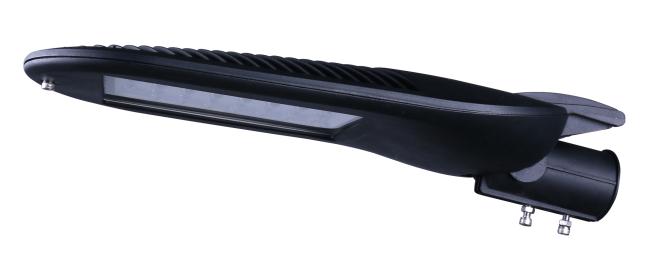

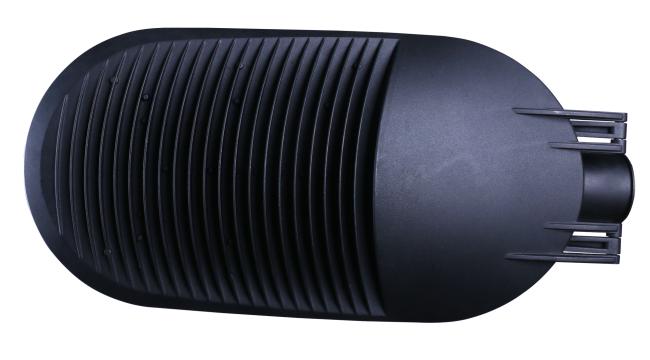

Detail Pictures:
Company Profile:
Die Casting Man set up a new joint venture company named Ningbo Die Casting Man Energy Co., Ltd.
We are moving into our new big factory on Dajiahe Industrial Zone, Ninghai Town.
Office still available in our old factory No.225 Tanshu Road Ninghai.
Dajiahe Factory covers an area of over 90000 square meter which is 100 kilometer from Ningbo Sea port
and 70 kilometer from Ningbo Airport.
It will a complete lighting industrial zone specialized in design, mold making, production, marketing and service.
New company focused on supply illumination and electrical products not only street light and die casting OEM,
but also floodlight, highbay, tunnel light and plant light
