Symmetrical Outdoor Garden Lights Led IK08 IP66 Park Lighting Fixture

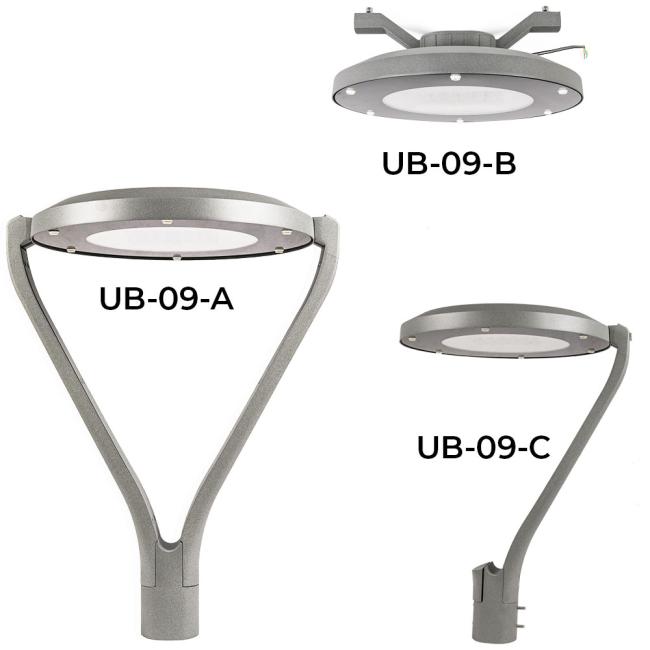

Three ways installation Outdoor Garden Lights symetrical Park light led lighting fixture
Product Specificaiton
| Product Code | YAUB-09-90A | ||||||||||||||
| Input Wattage | 30W | 55W | 80W | 100W | 120W | ||||||||||
| Color Temperature | 2700～6500K | 2700～6500K | 2700～6500K | 2700～6500K | 2700～6500K | ||||||||||
| Luminous Flux | 4200～4500lm | 7700-8250lm | 11200-12000lm | 13000-15000lm | 15000-17400lm | ||||||||||
| Input Voltage | AC90～305V | AC90～305V | AC90～305V | AC90～305V | AC90～305V | ||||||||||
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | ||||||||||
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | ||||||||||
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | ||||||||||
| Temperature of Working Condition | -40～50℃ | -40～50℃ | -40～50℃ | -40～50℃ | -40～50℃ | ||||||||||
| Humidity of Working Condition | 20%～90%RH | 20%～90%RH | 20%～90%RH | 20%～90%RH | 20%～90%RH | ||||||||||
| LED Lifetime | 50000h | 50000h | 50000h | 50000h | 50000h | ||||||||||
| Protectin Grade | IP66 | IP66 | IP66 | IP66 | IP66 | ||||||||||
| Protection level | IK08/09/10 | IK08/09/10 | IK08/09/10 | IK08/09/10 | IK08/09/10 | ||||||||||
| Installation Pipe Diameter | φ60/76mm | φ60/76mm | φ60/76mm | φ60/76mm | φ60/76mm | ||||||||||
| Installation Height | 3-4m | 3-4m | 4-5m | 4-5m | 4-6m | ||||||||||
| Net Weight | 6.0kgs | 6.0kgs | 6.0kgs | 6.0kgs | 6.0kgs | ||||||||||
| Gross Weight | 6.5kgs | 6.5kgs | 6.5kgs | 6.5kgs | 6.5kgs | ||||||||||
| Product Size(m m) | 545*465*715 | 545*465*715 | 545*465*715 | 545*465*715 | 545*465*715 | ||||||||||
| Packing Size(m m) | 550*520*245 | 550*520*245 | 550*520*245 | 550*520*245 | 550*520*245 | ||||||||||
Detail pictures
Company Profile:
Die Casting Man set up a new joint venture company named Ningbo Die Casting Man Energy Co., Ltd.
We are moving into our new big factory on Dajiahe Industrial Zone, Ninghai Town.
Office still available in our old factory No.225 Tanshu Road Ninghai.
Dajiahe Factory covers an area of over 90000 square meter which is 100 kilometer from Ningbo Sea port
and 70 kilometer from Ningbo Airport.
It will a complete lighting industrial zone specialized in design, mold making, production, marketing and service.
New company focused on supply illumination and electrical products not only street light and die casting OEM,
but also floodlight, highbay, tunnel light and plant light
We are moving all our facilities since beginning of this year and here comes some photos of our factory now.
Till now die casting ejection, CNC machinning, punching and assembling are already on line now.
New painting system will be put into use during this July.
New painting system have auto clearning and pretreatment system which will improve our pretreatment level.
We could make painting level from C3, C4 upto C5 now. This will be very helpful on our finish treatment.
