IP66 IK08 Aluminum LED Street Light Fixtures Free Tool Open
Price:
Negotiation
MOQ:
1pcs
Delivery Time:
7-30 days base on order quantity
Brand:
Die Casting Man/OEM
Product Description

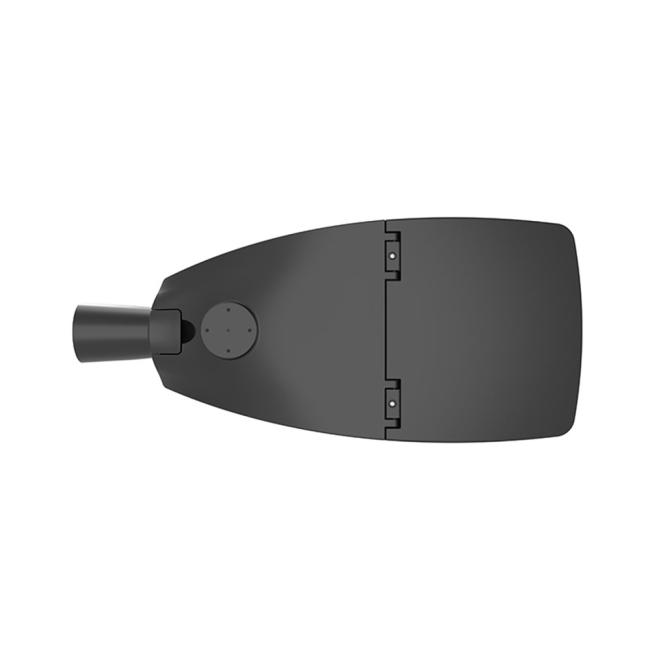

LED Street Light YASL-18M-80
Product Description

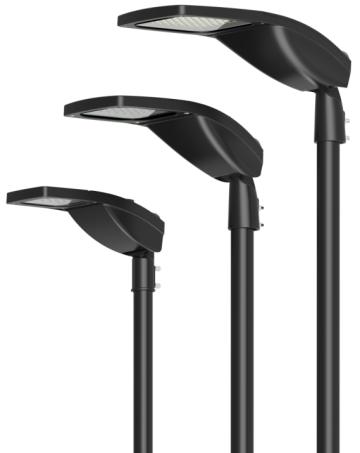

This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
Product Specification
| Product Code | YASL-18-30M | YASL-18-80M | YASL-18-150M | ||||||
| Input Wattage | 30W 40W 50W | 60W 80W 100W | 120W 150W 200W | ||||||
| Color Temperature | 2700～6500K | 2700～6500K | 2700～6500K | ||||||
| Luminous Flux | 3300-3750lm | 9200-10400lm | 16500-19500lm | ||||||
| Input Voltage | AC90～305V | AC90～305V | AC90～305V | ||||||
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | ||||||
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | ||||||
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | ||||||
| Chip brand | Ang brand can be optional | Ang brand can be optional | Ang brand can be optional | ||||||
| Driver brand | Ang brand can be optional | Ang brand can be optional | Ang brand can be optional | ||||||
| Temperature of Working Condition | -40～50℃ | -40～50℃ | -40～50℃ | ||||||
| Humidity of Working Condition | 20%～90%RH | 20%～90%RH | 20%～90%RH | ||||||
| LED Lifetime | 50000h | 50000h | 50000h | ||||||
| Protectin Grade | IP66 | IP66 | IP66 | ||||||
| Protection level | IK08 | IK08 | IK08 | ||||||
| Installation Pipe Diameter | φ45/60mm | φ60mm | φ60mm | ||||||
| Installation Height | 4-6m | 6-10m | 10-12m | ||||||
| Net Weight | 3.0kgs | 6.0kgs | 7.4kgs | ||||||
| Gross Weight | 3.5kgs | 6.5kgs | 8.0kgs | ||||||
| Packing Size(m m) | 545*270*220 | 720*320*210 | 820*340*210 | ||||||
Detail Pictures
Photometric
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S | ||||||||
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M | ||||||||
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |

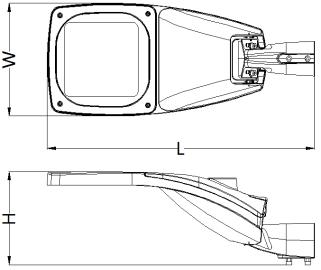

Product Size
| Product Code | YASL-18-30M | YASL-18-80M | YASL-18-150M | ||||||
| L(mm) | 495 | 644 | 740 | ||||||
| W(mm) | 220 | 269 | 308 | ||||||
| H(mm) | 190 | 203 | 207 | ||||||
Advantages

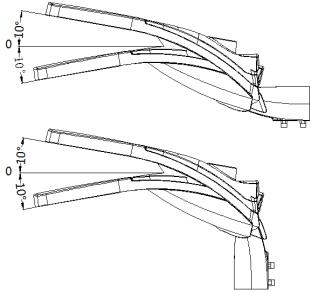

lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-10°to+10°
