Die Cast Aluminium Housing Outdoor LED Street Lights 60w 80w 100w Road Lighting
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
35days after deposit
Brand:
Die casting man
Product Description
Product Description
This Series is a high-performance street lighting available in three size
The luminaire is manufactured from high pressure die-casting aluminum
It shall have a led efficiency up to 150lm/w
The housing color can be optional.black.grey and silver as our standard.
Products Specification
| Product Datasheet | |||
| Item No. | YASL-21-40 | YASL-21-80 | YASL-19-150 |
| Power | 30W 40W 50W | 60W 80W 100W | 120W 150W 180W |
| Lumen Efficiency | 140lm/w | 140lm/w | 140lm/w |
| Lumen | 6500-7200lm | 13000-14500lm | 19500-21500lm |
| Electrical Data | |||
| Working Voltage | AC100-265V 丨 50/60Hz | ||
| LED: | Lumileds / Epistar / SANAN | ||
| CCT | 3000K, 4000K, 5000K ,6000K | ||
| CRI | Ra>70 (standard)/ Ra>80 | ||
| Driver | Inventronics/ Meanwell/ Sosen | ||
| THD | <15% | ||
| Power Factor(PF) | PF>0.95 | ||
| IP Rating | IP66 | ||
| IK Rating | 1K09 | ||
| Holder | 50mm/B60mm (standard) | ||
| Body Material | Hign pressure die-cast aluminum | ||
| Housing Calor | Dark Grey/Black/Light Grey (availabel on request) | ||
| Cover Material | UV-resistant Polycarbonate | ||
| Working Environment | -20℃ ~+50℃ , 10%~90%RH | ||
| Lifespan L70 at 25℃ | > 50,000hrs | ||
| Mounting Type | Side entry or Vertical pole mounted ±15° | ||
| Dimmable | 1-10V Dimming /Timer Dimming | ||
| Protecdion Class | Class I (standard) / Class Ⅱ | ||
| Standards | CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09 | ||
| Available on request | NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming | ||
| Reasonable tolerance | Watt: ±10%,CCT:±500K, Lumen efficiency: ±5% | ||

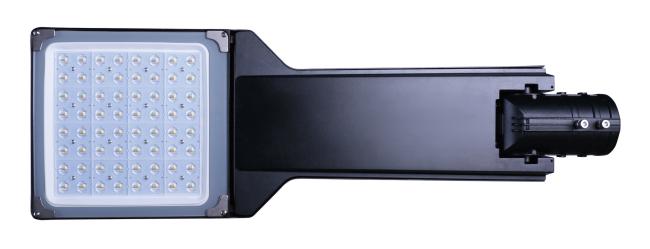

Detail Picture

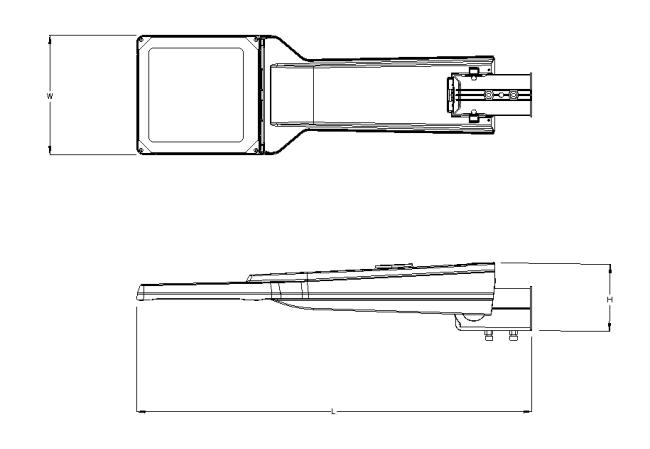

Product Size
| Product code | YASL-21-40 | YASL-21-80 | YASL-21-150 |
| L(mm) | 564 | 719 | 836 |
| W(mm) | 165 | 216 | 266 |
| H(mm) | 125 | 139 |
155 |

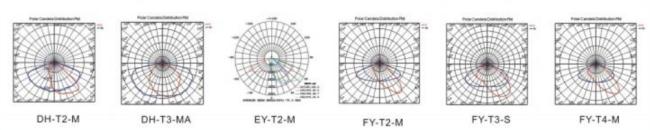

Photometric Data
Installation
