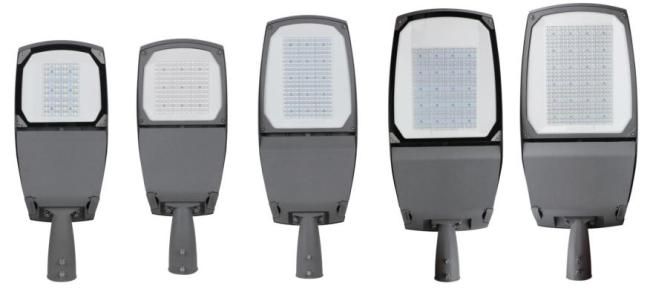

Dust Proof Diecasting Aluminium LED Street Light Housing 15 Degree Tilt Adjustable
Products Description
| Model | SL-25-40 | SL-25-100 | SL-25-150 | SL-25-240 | |||||
| Input Wattage (W) | 30/40/50/60 | 80/100/120 | 150/180/200 | 240/320 | |||||
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ60/76mm | |||||
| Installation Height (m) | 3-8 | 6-10 | 8-12 | 10-14 | |||||
| Input Voltage | 90~305Vac | ||||||||
| Frequency Range | 50/60Hz | ||||||||
| Power Factor | ≥0.9 | ||||||||
| Light source | LED | ||||||||
| Driver | Inventronics | ||||||||
| Meanwell (optional) | |||||||||
| other brand of driver(upon request) | |||||||||
| Luminaire efficacy (lm/W) | 130-170 | ||||||||
| Color Temperature | 4000K (3000K/5000K,5700K upon request) | ||||||||
| Color rendering index | ≥70 | ||||||||
| Diming | Dali (optional) | ||||||||
| 1-10V (optional) | |||||||||
| PWM (optional) | |||||||||
| Smart control management system (upon request) | |||||||||
| The environment temperature | -40~45ºC | ||||||||
| Humidity of Working Condition | 20%~90%RH | ||||||||
| Protectin Grade | IP66 | ||||||||
| IK Protection level | IK08 | ||||||||
| Standards & Certifications | ENEC | ||||||||
| CB | |||||||||
| CE | |||||||||
| Rohs | |||||||||
| Options | Photocell | ||||||||
| Surge protection | |||||||||
| External cable (length upon request) | |||||||||
| Smart control device | |||||||||
| Meterials | Housing: ADC12 die-cast aluminum | ||||||||
| Cover: Toughened Glass | |||||||||
| External Screws: 304 stainless screws | |||||||||
| Color | Grey/Black ( other upon request) | ||||||||
FAQ
Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
Q5. What is your sample policy?
A: We are glad to send ip65 led light samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
