AC 220V Smart City LED Public Lighting Post Top Mounting Road Light For Outdoor

Price Negotiable

Price: USD28~58/PCS

MOQ: 1 PCS

Delivery Time: 25 days

Brand: Die-casting Man

Product Description

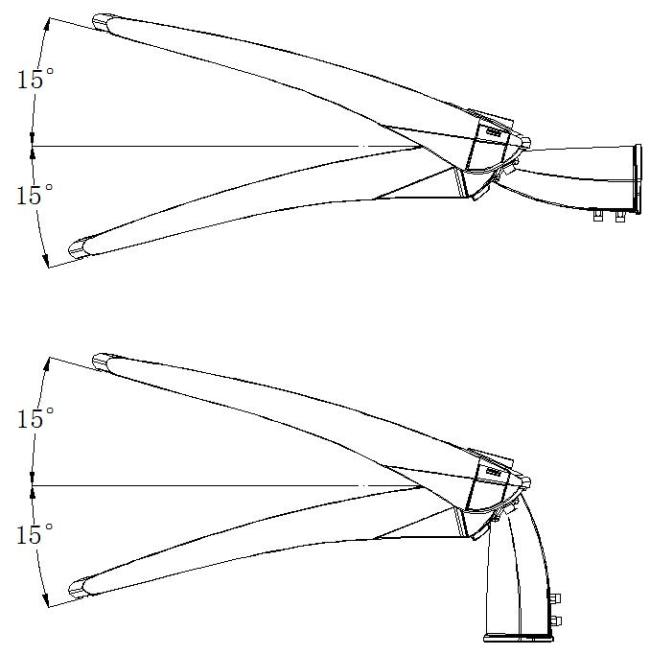

lnstalling Ways:

Both Horizontal and Vertical available and adjustable angle-15°to+15°


90 degree installation	Front

Back	Side

Product Specification

Product Code	YASL-25-40M			YASL-25-100M		YASL-25-150M		YASL-25-240M
Input Wattage	30W	40W	50W	60W	100W	120W	150W	200W	300W
Installation Pipe Diameter	φ45/60mm			φ45/60mm		φ45/60mm		φ45/60/76mm
Luminous Flux	3900-4500lm	5200-6000	6500-7500lm	7800-9000lm	13000-15000lm	15600-18000lm	19500-22500lm	26000-30000lm	31200-36000lm
Color Temperature	2700～6500K
Input Voltage	AC90～305V
Frequency Range	50/60Hz
Power Factor	PF≥0.95
color rendering index	Ra≥70
Temperature of Working Condition	-40～50℃
Humidity of Working Condition	20%～90%RH
LED Lifetime	50000h
Protectin Grade	IP66
Protection level	IK08/09/10
Installation Height	3-6m	3-6m	4-6m	4-8m	6-10m	8-12m	8-12m	10-14m	10-14m
Net Weight	2.9kgs	2.9kgs	2.9kgs	3.8kgs	3.8kgs	5.7kgs	5.7kgs	7.2kgs	7.2kgs
Gross Weight	3.4kgs	3.4kgs	3.4kgs	4.0kgs	4.0kgs	6.0kgs	6.0kgs	7.5kgs	7.5kgs
Packing Size(m m)	555210143			680270160		820320160		920370180

Product Description

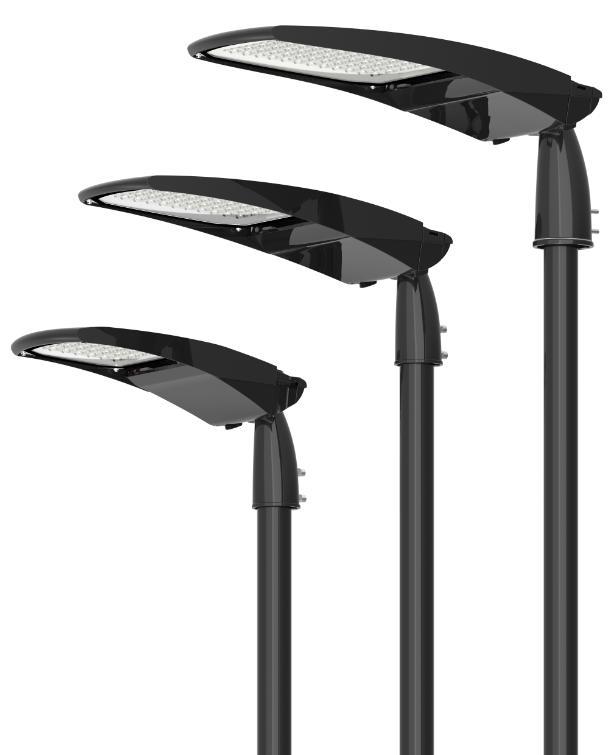

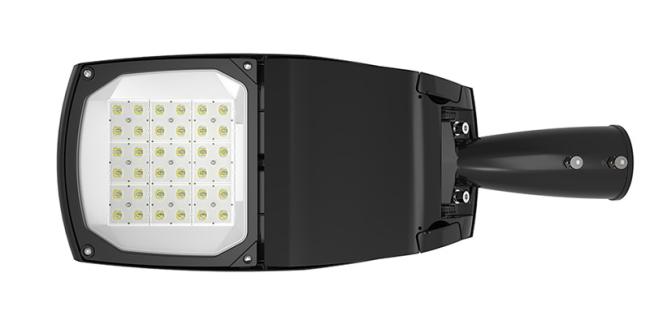

This Led light is a high-performance street lighting available in four sizes:40W/100M/150/200W.

The lunimaire is manufactured from high quality pressure die-casting aluminum.

lt shall have a led efficiency up to 130 lm/w and will be capable of producing.

It up to 26000 luminaire lumens at 4000K finished in Grey or black as standard and 5 years warranty.

Standards & Certification:ENEC,CB,CE,Rohs.

Photometric

DH-T1	DH-T3-M	DH-T4-M	DY-T3-M	GY-T2-M01	GX-T2-M	GX-T4-L	HX-T2-S
DH-T2-L	DH-T3-MA	DH-T5-M	GY-T1-M	GY-T3-M01	GX-T3-M	HY-T2-M	HX-T2-M
DH-T2-M	DH-T3-MB	DY-T2-M	GY-T2-M	GX-T2-S	GX-T4-M	HY-T3-M	HX-T3-M

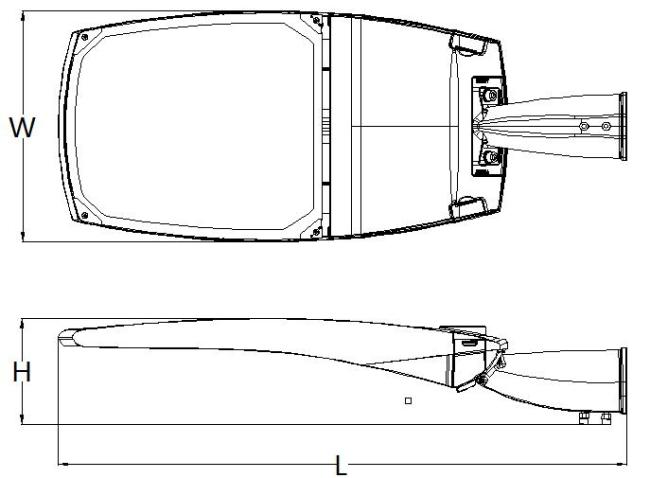

Product Size

Product Code	YASL-25-40M	YASL-25-100M	YASL-25-150M	YASL-25-240M
L(mm)	555	645	790	890
W(mm)	210	257	305	361
H(mm)	143	147	147	163

streetlight technical requirements

S.No	Requirement	Requirement	Test Standard	Supplier Answers
Physical requirements
1	Housing type	Heavy-duty rugged pressure die-cast aluminium allo	ISO 3522
2	Cover	Tempered Glass
3	Gasket	Silicon Rubber gasket
4	Housing wattage range	30W ~240W
5	Socket Options	NEMA socket, Photocell, Smart controller, Shorting Cap
6	Stainless-steel components	Minimum 316L Grade 316L
7	IP Protection	IP66	IEC 60529
8	IK Protection	IK08	IEC 62262
9	Tool free opening	Tool-free access to gear compartment
10	Corrosion tests in artificial atmospheres — Salt spray tests	EN/ISO 9227 - Corrosion tests in artificial atmospheres — Salt spray tests for 1000 hours 1000 小时	EN/ISO 9227
11	Vibration test	ANSI C136.31 - Roadway and Area Lighting Equipment - Luminaire Vibration	ANSI C136.31
LED and Optics
1	LED Make	Osram/CREE/Lumileds
2	LED Type	>2W High power LED with ceramic base (3V - Single chip die)
3	LED driving current	<750mA
4	LED life LED	>100,000 hours @L95	LM80 and TM21
5	Optics Material	UV PC
6	Lighting distributions	Type I, II, III, IV
Thermal Requirements
1	Product ambient temperature range	-40°C to 55°C
2	Product Storage temperature range	up to 85°C
3	LED Case temperature (Tc)	<75°C @50°C ambient temperature	UL1598
4	Driver Case temperature range	<85°C @50°C ambient temperature	UL1598
Performance
1	Input Voltage Range	110 ~ 270VAC - 50/60Hz	IEC 60598-2-3
2	Power Factor	>0.90	IEC 60598-2-3
3	THD	<20%	IEC 60598-2-3
4	Surge Protection	10KV
5	Dimming	1-10V or 1-10V+DALI
6	Appliance class	Class I or Class II	IEC 60598-2-3
7	CCT	3000K/4000K/5700K	ANSI C78.377A
8	CRI	>70Ra	ANSI C78.377A
9	MacAdam	<3 Step Binning	ANSI C78.377A
10	Product life	>100,000 hours @L80	TM28
11	Lumen efficacy As per LM-79	≥ 160lm/W (25°C ambient temperature)	LM-79
12	Lumen efficacy As per LM-82	Not more than 5% difference form LM79 result	LM-82
13	LED module connector and wire joint connectors	UL approved	IEC 60598-2-3
14	Electrical wires between Driver and LED modules and NEMA socket and driver	Must be UL approved	IEC 60598-2-3
