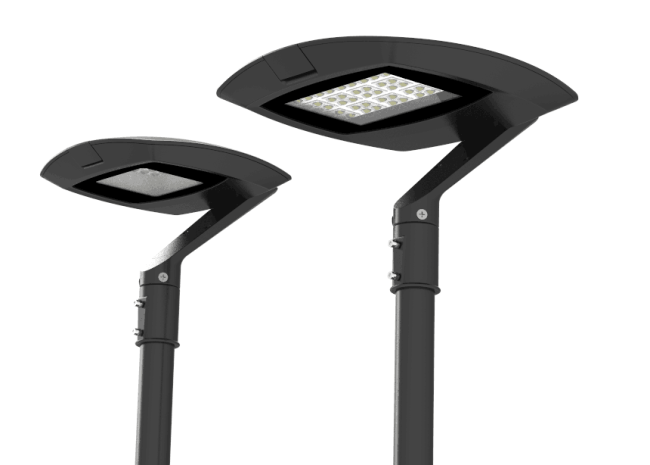

ADC12 Die Casting Aluminum Urban Light Fixture 80w Led Urban Light
Price:
negotiation
MOQ:
1pc
Delivery Time:
5-7days for sampling, 25-35days for mass production
Brand:
Die Casting Man/OEM
Product Description
Product Material
*Die casting aluminum body
*Ultra clear tempered glass
*High transmittance PC lens
Product Specification
| Product Code | YSUB-02-50 | YSUB-02-120 |
| Input Wattage | 50-80W | 100-150W |
| Color Temperature | 3000-6500K | 3000-6500K |
| Luminous Flux | 9200-10400lm | 17250-19500lm |
| Input Voltage | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h |
| Protection Grade | IP66 | IP66 |
| Installation Height | 4-8m | 6-12m |
| Net Weight | 9.0kgs | 12.5kgs |
| Gross Weight | 9.5kgs | 13.8kgs |
| Packing Size(mm) | 490*590*155 | 570*700*165 |
| Product Size(mm) | 430*416*191 | 580*522*390 |
Product Advantage
*YSUB-02 family is a high-performance street light available in two sizes
*The luminous will be at least 130lm/w
*Finish:power coating.we can make it pass 1000hrs salty spray test
*Housing colour :double grey/sandy black/matt silver as stand.other color can be optional.
Application
Street light.Road.Garden.Park.etc
