150w 15000lm/W High Power Led Street Light Adjustable Bracket 50mm 60mm
LED STREET LIGHTS
Description:
120W LED streetlight made of High quality Die Casting Aluminum housing + LED model+MeanWell Driver
1. The latest version of high power SMD Street Light Housing,User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.

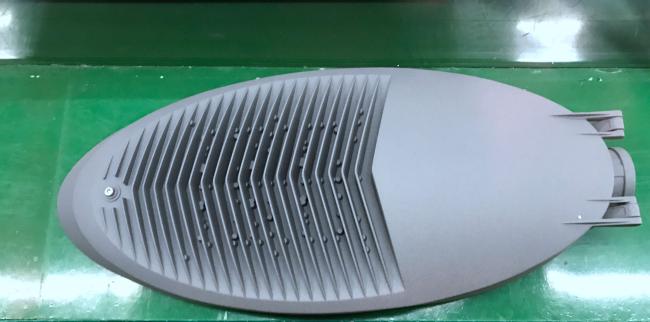

2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat agement system,which can hold 5pcs of LED Model.
3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.
4. IP65 protection grade.
5.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
Specifications
| Item NO. | ZHSL-05-40 | ZHSL-05-60 | ZHSL-05-120 |
| LED Quantity | 18pcs | 54pcs | 80pcs |
| Rated Power | 30W | 80W | 120W |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K |
| Initial Luminous Flux | 3000LM | 8000LM | 12000LM |
| Input Voltage | AC100-240V | AC100-240V | AC100-240V |
| Frequency Range | 50-60Hz | 50-60Hz | 50-60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color Rendering Index | Ra>70 | Ra>70 | Ra>70 |
| Temperature Working Condition | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ |
| Humidity of Working Condition | 20-90% | 20-90% | 20-90% |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP65 | IP65 | IP65 |
| Installation Pipe Diameter | 60mm | 60mm | 60mm |
| Installation Height | 6-8m | 6-8m | 6-8m |
| Net Weight | 2.9kgs | 6.2 kgs | 10 kgs |
| Gross Weight | 3.3kgs | 7 kgs | 11 kgs |
| Packing Size | 52*28*14 cm | 71*35*16 cm | 91.5 x42x19 cm |
Quality Material and Technology
1- Body: Aluminum die-casting with epoxy power coated
2- Reflector: Hight reflection index anodised aluminum
3- Optics: High transparent tempered glass
4- Gasket: Silicon gasket for high temperature and raging
5- Screw: Stainless steel
6- Color: Charcoal grey, matt finish and other colours option upon request.
Special Features of the Lighting Fixture
1- High quality: Aluminum die-cast body with elegant industrial design
2- High Lumen efficacy with top high reflective anodised aluminium reflector, high uniformity factor
3- Frame is being fixed at the by invisible screws
4- Mounting Bracket locking position
