Aluminum Die Casting Led Street Light Housing With Clips 150W For Courtyard
ADC12 die casting aluminum housing IP66 IK08 high quality led street light housing

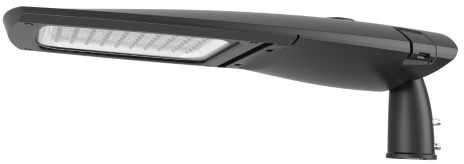

LED Street Light YASL-14
MAJOR BENEFITS
Long life in the harshest weather conditions
Optimal system performance
Modular design (replaceable)
Easy maintenance without screws and tools
Energy optimization and best price commensurate with performance
Rotor (steering part) for horizontal and vertical adjustment of lights
Multiple lenses to facilitate better vision and lighting on different roads
Model YASL-14 LED lamp is a sample and efficient product that significantly reduces energy, maintenance costs.
One of the features of this lamp is that it does not need tools to replace parts to upgrade it.
Another feature of this lamp is the ability to install horizontally and vertically.

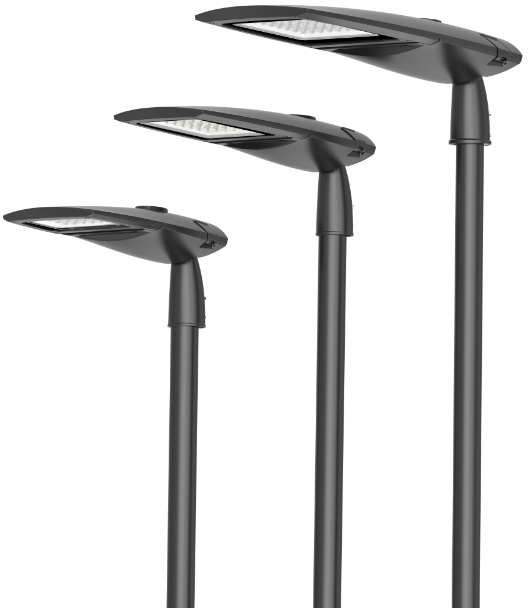

Model YASL-14 LED light is available in three sizes and six light distribution curves from 4500 to 27000 lumens.
The YASL-14 LED lamp with an optical gain of up to 130 lumens per watt has a long life of more than 100,000 hours.
The useful life of this lamp is at least 20 years.
 |
 |

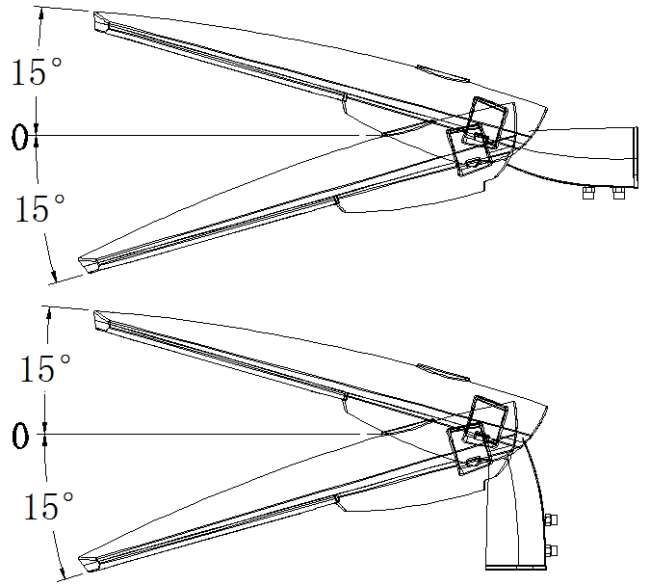

| 90 degree installation | Back |
 |
 |

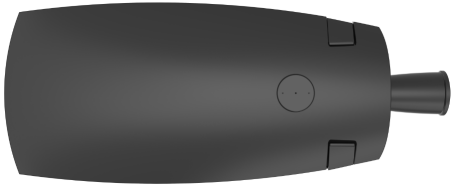

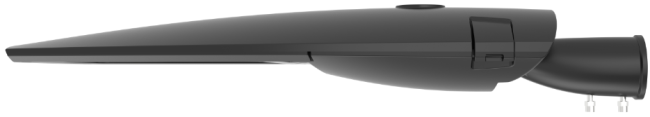

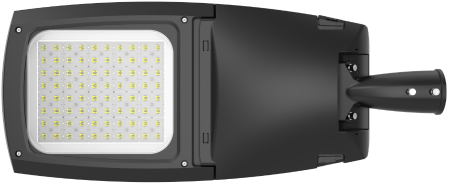

| Front | Side |
Product Specification
| Product Code | YASL-14-80 | ||||||
| Input Wattage | 120W | ||||||
| Color Temperature | 2700～6500K | ||||||
| Luminous Flux | 15600-18000lm | ||||||
| Input Voltage | AC90～305V | ||||||
| Frequency Range | 50/60Hz | ||||||
| Power Factor | PF≥0.95 | ||||||
| color rendering index | Ra≥70 | ||||||
| Temperature of Working Condition | -40～50℃ | ||||||
| Humidity of Working Condition | 20%～90%RH | ||||||
| LED Lifetime | 50000h | ||||||
| Protectin Grade | IP66 | ||||||
| Protection level | IK08/09/10 | ||||||
| Installation Pipe Diameter | φ45/60mm | ||||||
| Installation Height | 6-12m | ||||||
| Net Weight | 5.4kgs | ||||||
| Gross Weight | 6.5kgs | ||||||
| Packing Size(m m) | 775*315*190 | ||||||
| Product Code | YASL-14-40 | YASL-14-80 | YASL-14-120 | ||||||||
| Input Wattage | 60W | 120W | 200W | ||||||||
| Color Temperature | 2700~6500K | 2700~6500K | 2700~6500K | ||||||||
| Luminous Flux | 7800-9000lm | 15600-18000lm | 26000-30000lm | ||||||||
| Input Voltage | AC90~305V | AC90~305V | AC90~305V | ||||||||
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | ||||||||
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | ||||||||
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | ||||||||
| Temperature of Working Condition | -40~50ºC | -40~50ºC | -40~50ºC | ||||||||
| Humidity of Working Condition | 20%~90%RH | 20%~90%RH | 20%~90%RH | ||||||||
| LED Lifetime | 50000h | 50000h | 50000h | ||||||||
| Protectin Grade | IP66 | IP66 | IP66 | ||||||||
| Protection level | IK08/09/10 | IK08/09/10 | IK08/09/10 | ||||||||
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ60/70mm | ||||||||
| Installation Height | 4-6m | 6-12m | 10-14m | ||||||||
| Net Weight | 4.6kgs | 5.4kgs | 9.8kgs | ||||||||
| Gross Weight | 5.0kgs | 6.5kgs | 11.5kgs | ||||||||
| Packing Size(m m) | 670*315*190 | 775*315*190 | 800*390*190 | ||||||||

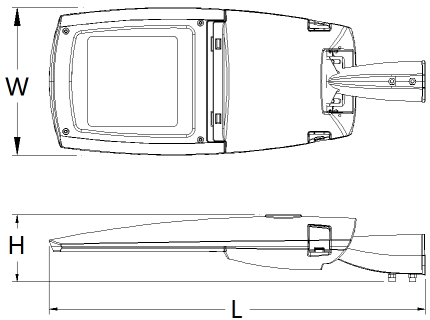

| Product Code | YASL-14-40 | YASL-14-80 | YASL-14-120 | ||||||||
| L(mm) | 620 | 738 | 922 | ||||||||
| W(mm) | 287 | 289 | 362 | ||||||||
| H(mm) | 131 | 131 | 140 | ||||||||
IP66 CE ROHS
 |
 |
 |

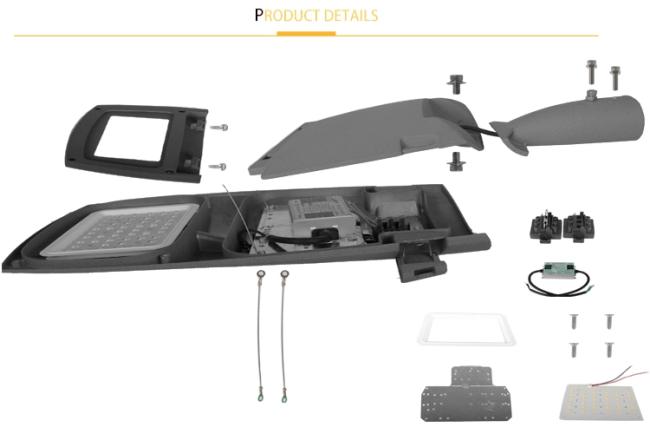

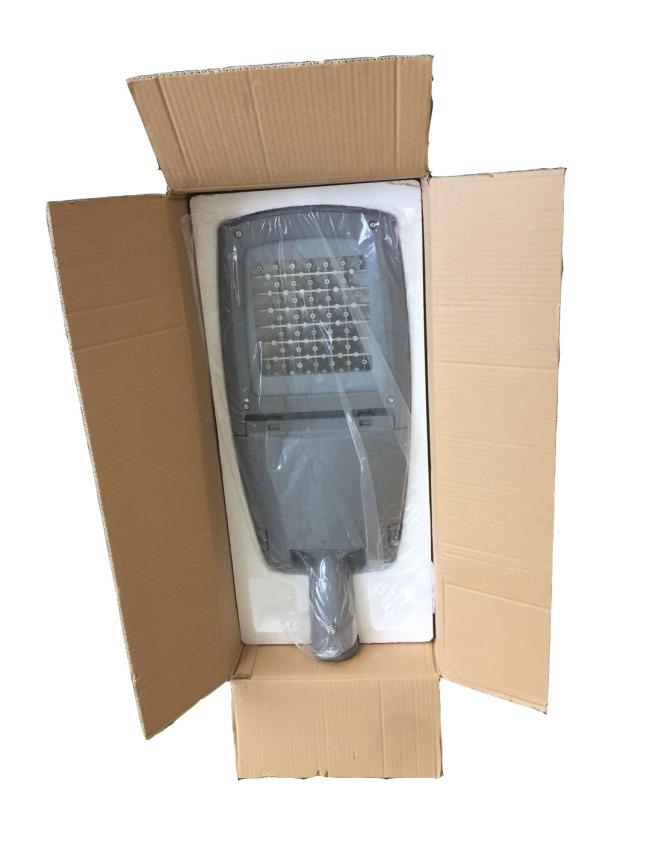

Detail Picture:
