Tool Free IP66 Waterproof LED Street Light Fixtures For Major Road
Price:
Negotiation
MOQ:
10pcs
Delivery Time:
7-30 days base on order quantity
Brand:
Die Casting Man
Product Description
Outdoor Street Light empty housing YASL-19
INSTALL.
This fixture is mounted on a 4-14m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle-15°to+15°
Fixture has internal clamps to secure itself to pole.
This 150 Watt LED STREET LIGHT is ideal for residential street and parking lot outdoor lighting applications. It is
also IP66 Wet location rated and can operate in temperatures ranging from -40 degree to 50 degree. This fixture has 1000 hours salt water spray test. Fixture is tough and durable rated at IK08 impact rating.
This fixture is mounted on a 4-14m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle-15°to+15°
Fixture has internal clamps to secure itself to pole.
This 150 Watt LED STREET LIGHT is ideal for residential street and parking lot outdoor lighting applications. It is
also IP66 Wet location rated and can operate in temperatures ranging from -40 degree to 50 degree. This fixture has 1000 hours salt water spray test. Fixture is tough and durable rated at IK08 impact rating.
It has two optional. One is Glass optional, and the other is Frame optional.
Product Details:
| Product Code | YASL-19-30M | YASL-19-50M | YASL-19-80M | YASL-19-150M | |||||||||
| Input Wattage | 50W | 60W | 100W | 200W | |||||||||
| Color Temperature | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | |||||||||
| Luminous Flux | 6500-7000lm | 13000-15000lm | 13000-15000lm | 26000-30000lm | |||||||||
| Input Voltage | AC90~305V | AC90~305V | AC90~305V | AC90~305V | |||||||||
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |||||||||
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | |||||||||
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | |||||||||
| Temperature of Working Condition | -40~50ºC | -40~50ºC | -40~50ºC | -40~50ºC | |||||||||
| Humidity of Working Condition | 20%~90%RH | 20%~90%RH | 20%~90%RH | 20%~90%RH | |||||||||
| LED Lifetime | 50000h | 50000h | 50000h | 50000h | |||||||||
| Protectin Grade | IP66 | IP66 | IP66 | IP66 | |||||||||
| Protection level | IK08/09/10 | IK08/09/10 | IK08/09/10 | IK08/09/10 | |||||||||
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ45/60mm | |||||||||
| Installation Height | 4-6m | 5-8m | 6-10m | 8-14m | |||||||||
| Net Weight | 3.1kgs | 4.1kgs | 5.0kgs | 6.7kgs | |||||||||
| Gross Weight | 3.5kgs | 4.6kgs | 5.5kgs | 7.5kgs | |||||||||
| Packing Size(m m) | 580*250*165 | 630*280*155 | 670*310*155 | 820*340*155 |
|||||||||
Product Size
| Product Code | YASL-19-30M | YASL-19-50M | YASL-19-80M | YASL-19-150M | |||||||||
| L(mm) | 459 | 577 | 627 | 768 | |||||||||
| W(mm) | 186 | 233 | 271 | 301 | |||||||||
| H(mm) | 119 | 103 | 103 | 104 | |||||||||
| Product Datasheet | ||||
| Item No. | YASL-19-30 | YASL-19-50 | YASL-19-80 | YASL-19-150 |
| Power | 30W | 50W | 80W | 150W |
| Lumen Efficiency | 140lm/w | 140lm/w | 140lm/w | 140lm/w |
| Lumen | 3800lm | 6500lm | 10400lm | 19500lm |
| Product Size (mm) | 459X186X119 | 577X233X103 | 627X271X103 | 768X301X104 |
| Electrical Data | ||||
| Working Voltage | AC100-265V 丨 50/60Hz | |||
| LED: | Lumileds / Epistar / SANAN | |||
| CCT | 3000K, 4000K, 5000K ,6000K | |||
| CRI | Ra>70 (standard)/ Ra>80 | |||
| Driver | local | |||
| THD | <15% | |||
| Power Factor(PF) | PF>0.9 | |||
| IP Rating | IP66 | |||
| IK Rating | 1K09 | |||
| Holder | 50mm/B60mm (standard) | |||
| Body Material | Hign pressure die-cast aluminum | |||
| Housing Calor | Dark Grey/Black/Light Grey (availabel on request) | |||
| Cover Material | UV-resistant Polycarbonate | |||
| Working Environment | -20℃ ~+50℃ , 10%~90%RH | |||
| Lifespan L70 at 25℃ | > 50,000hrs | |||
| Mounting Type | Side entry or Vertical pole mounted ±15° | |||
| Dimmable | 1-10V Dimming /Timer Dimming | |||
| Protecdion Class | Class I (standard) / Class Ⅱ | |||
| Standards | CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09 | |||
| Available on request | NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming | |||
| Reasonable tolerance | Watt: ±10%,CCT:±500K, Lumen efficiency: ±5% | |||

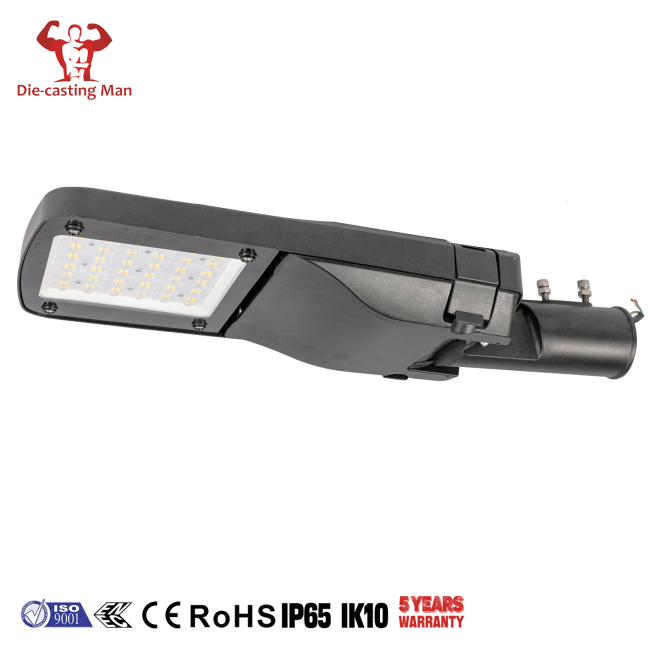

Product Picture
Line Drawing
Equipment
Company profile
* A professional origin die casting manufacturer of led outdoor light.
* With more than 2 decades years experience.
* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* ODM and OEM service are both available to customers domestic and overseas.
