High Master 600w 1000w Led Flood Light With 3030 Chips And Famous Brand Driver
High Mast
Description:
300W Outdoor Led Floodlight with 3030 LED Chips high quality die-casting aluminum body,IP65,3Years warranty.
1. High light intensity , simple designs and ideally suited.
2. High quality Die casting aluminum boday with anti-corrosiontreatment and with electrostatic plastic coating.
3. LED Floodlight housing can make 200W.
4. Highly polished aluminum reflector.
5. Adjustable single bracket could make the light for 120 degree around.
6. High Efficient and power factor led power supply .
7. Obtain a 50-70% energy saving compared with halogen lamps.
8. Replace traditional SON and Metal Halide which consume 400W.
Applications:
LED high bay luminaire for factory buildings, production halls, assembly halls, storage buildings, sales areas, exhibtion spaces, ...
Specifications
|
Model Number |
HP-01-600 | |
|
Electrical Specifications |
LED QTY |
1008pcs |
|
TotaLPower consumption |
600W |
|
|
Operation Voltage |
85-265VAC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.9 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
20000 lm - Initial |
|
|
20000 lm - Maintain |
|
|
Led Luminous Efficiency |
>70LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Beam Angle |
120 degree |
|
|
Mechanical Specifications |
IP Rating |
IP65 |
|
Warranty |
3Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
Patented anti-glare optic lense |
|
|
Fixture Dimension |
115.06*141.9*51.14MM |
|
|
Fixture Weight |
32KGS |
|
|
Packing Information |
Packing Type |
1pcs /ctn |
|
Packing Dimension |
69*56*44CM |
|
|
Packing Weight |
37KGS |
|
| Product Code | YAHP-01-200 | YAHP-01-400 | YAHP-01-600 |
| Wattage input | 200W | 400W | 600W |
| Color temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Angle of light | 30 ° / 60 ° / 90 ° | 30 ° / 60 ° / 90 ° | 30 ° / 60 ° / 90 ° |
| Luminous flux | 69000-75000lm | 69000-75000lm | 69000-75000lm |
| Input voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency band | 50 / 60HZ | 50 / 60HZ | 50 / 60HZ |
| Power factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering | Ra≥70 | Ra≥70 | Ra≥70 |
| Working condition temperature | -40-50 °C | -40-50 °C | -40-50 °C |
| Moisture of working conditions | 20٪ -90٪ RH | 20٪ -90٪ RH | 20٪ -90٪ RH |
| LED lifespan | 50000H | 50000H | 50000H |
| Degree of protection | IP66 | IP66 | IP66 |
| Installation height | 10-15M | 15-20M | 20-25m |
| Net weight | 12.5KG | 24.0Kg | 36.0Kg |
| Total weight | 13.0Kg | 24.8Kg | 37.0Kg |
| Packing size (mm) | 350 × 600 × 240 | 620 × 660 × 240 | 950 × 660 × 240 |

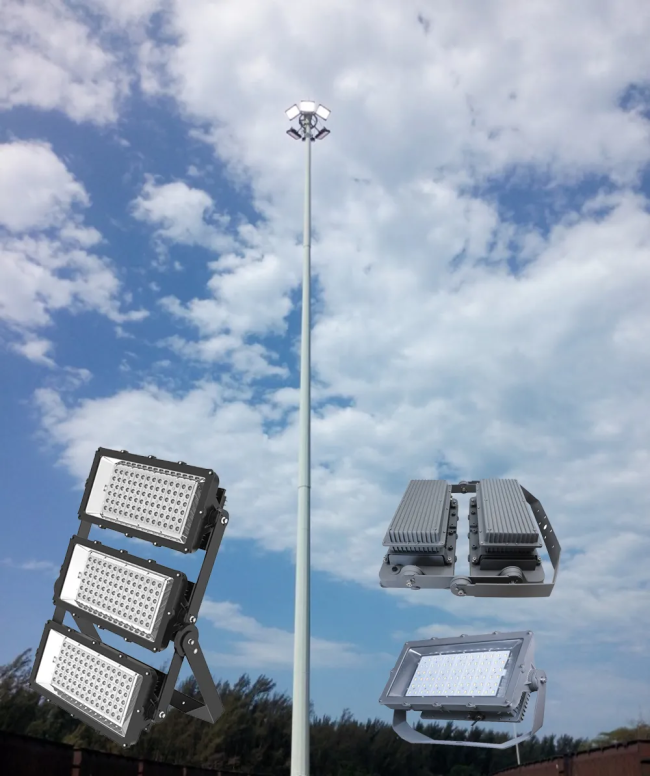

HP-01 is an LED Lighting for suspension installation on a very high mounting height. The overhead lighting system is in fact the perfect solution for illuminating spaces with high ceilings. The perfect solution for high mast lighting with high energy efficiency.
Suspended urban outdoor high mast lighting
HP-01 is a kind of the HP(High Mast) field lighting fixture series, a complete system designed for a wide range of pole-top, bracket and suspension applications. Usually used to illuminate a large area from a high installation height for storage, transportation , and pedestrian use and safety.
High mast lighting is a kind of field lighting fixture, usually used to illuminate a larger area from a high installation height for storage, transportation, and pedestrian use and safety. High mast fixtures are usually installed on poles from 40 feet to 150 feet high, with 4 to 16 fixtures on each pole. This type of outdoor lighting is often used in parking lots of municipalities, ports, municipalities, and large venues such as stadiums and sports facilities.
Various industries and facilities require high mast lighting. Some of the most common are:
This type outdoor lighting is oftern used in
Parking lots
Ports
Urban
High Way side
Stadiums
Sports facilities
