150w 300w Outdoor Area Lighting With 3030 / 5050 Chip Adjustable Angle ±20 Degrees
300W IP66 LED Street Light Module
Product Description
The SL-17 series is a cost-effective outdoor lighting solution engineered for parking lot and street illumination applications.
Key Features & Specifications
Power & Protection: 300W output with IP66 ingress protection rating, ensuring reliable performance in harsh outdoor environments.

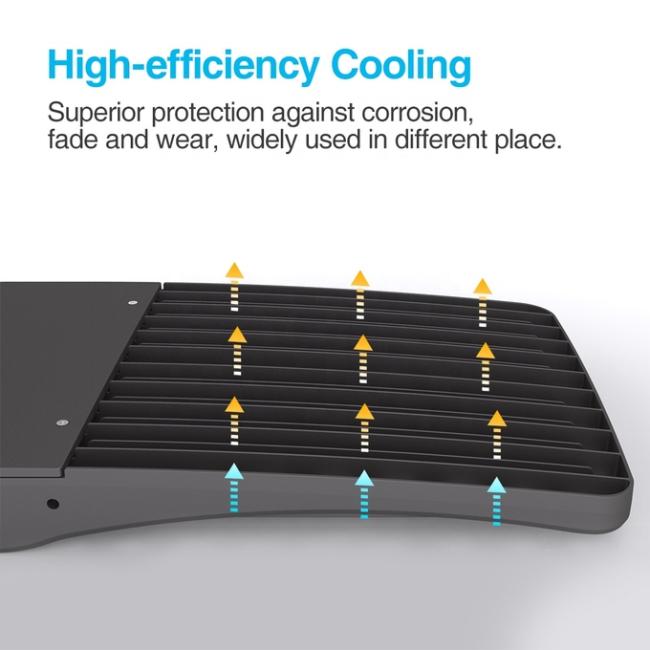

Heat Dissipation: Equipped with an aluminum heat sink for efficient thermal management, safeguarding LED longevity and consistent luminous efficacy.
Material: Die-cast aluminum construction, offering excellent salt spray corrosion resistance, anti-aging properties, and high thermal conductivity.

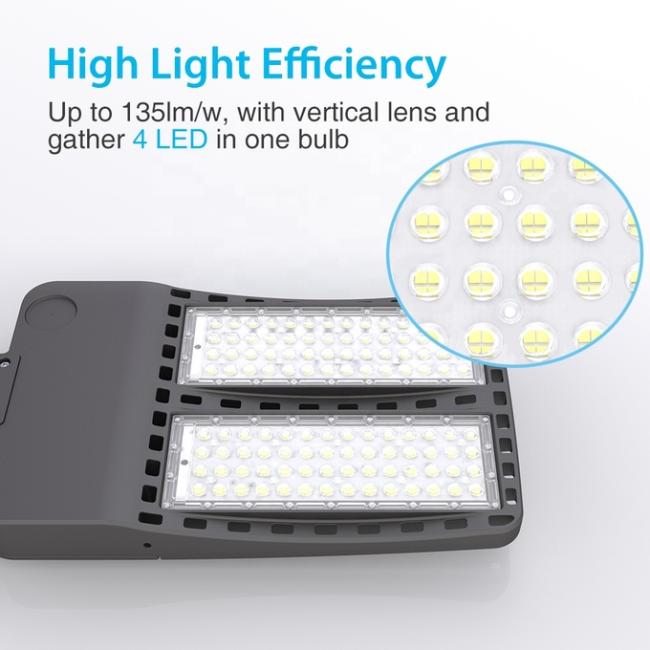

LED Efficiency: Delivers 130 lumens per watt (lm/W), ensuring energy-efficient and bright illumination for main road use.
| Product Code | YASL-17-150 | YASL-17-300 |
| Input Wattage | 150W | 300W |
| Color Temperature | 3000-6500K | 3000-6500K |
| Luminous Flux | 18000-21000lm | 890000-45000lm |
| Input Voltage | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h |
| Protection Grade | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm |
| Installation Height | 4-6m | 8-12m |
| Net Weight | 6.3kgs | 8.9kgs |
| Gross Weight | 7.0kgs | 9.5kgs |
| Packing Size(mm) | 530*350*130 | 630*400*130 |
| Product Size(mm) | 683*305*88 | 783*355*140 |
