Die Cast Aluminum Led Street Light 50 Watt Tempered Glass Cover
Price:
Negotiation
MOQ:
10pcs
Delivery Time:
7-30 days base on order quantity
Brand:
Die Casting Man/OEM

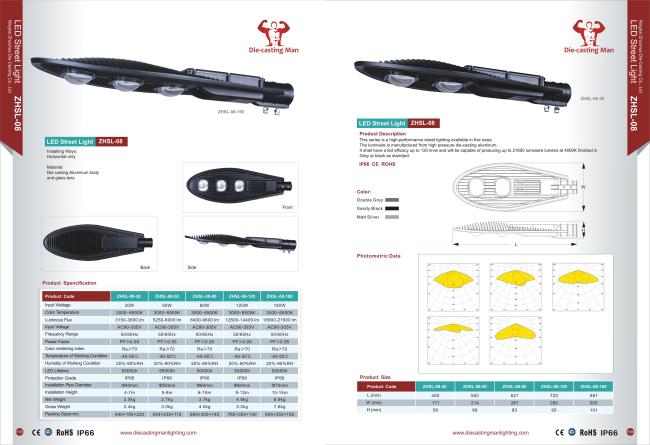

Product Description
Aluminum IP65 High Power Led Street Light 60 Watt Natural White
ZHSL-08-80
It has 30W, 50W, 80W,120W,180W from 5 bodies.
Installing Ways: Both Horizontal and Vertical available and adjustable angle-10°to 10°
Material:Die casting Aluminum body.
160° 140° is avaiable.
Product Details
| Product Code | ZHSL-08-30 | ZHSL-08-50 | ZHSL-08-80 | ZHSL-08-120 | ZHSL-08-180 |
| Input Wattage | 30W | 50W | 80W | 120W | 180W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 3150-3600lm | 5250-6000 lm | 8400-9600 lm | 12600-14400lm | 18900-21600lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of Working Condition | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of Working Condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | ф40mm | ф50mm | ф60mm | ф60mm | ф70mm |
| Installation Height | 4-7m | 5-8m | 6-10m | 8-12m | 10-14m |
| Net Weight | 2.0kg | 2.7kg | 3.7kg | 4.8kg | 6.9kg |
| Gross Weight | 2.4kg | 3.0kg | 4.0kg | 5.2kg | 7.6kg |
| Packing Size(mm) | 440×195×220 | 545×230×115 | 665×300×140 | 765×300×140 | 905×355×150 |
It is consist of a die-cast aluminum body and toughed glass cover, making it work well in harsh outdoor environments. The highest lumens output also will save much energy. This series includes 50W 100W 150W 200W 250Watt, that can meet the needs of most outdoor street lighting projects.
Materials and Finished
- Heat sink (housing): Die-cast aluminum housing, Grey/Black powder coated.
- Lens/diffuser: Toughed glass, Anti-UV. High light transmittance reaches more than 90%, strong sealing performance.
- With wide and narrow light distribution available.
- Using high-brightness Bridgelux LED COB Chips OR Integrated chips with SMD3030, highest lumens output, lowest light decline, longest service life.
- Isolated led driver with Overvoltage protection, anti-surge
- Stainless steel screws
- 0.75²*3 input cable, High and low-temperature resistance, good insulation performance
Electrical & Optical
- Working voltage:100-277VAC 50/60Hz or 220-240VAC 50/60Hz.
- Power Factor (PF):>0.9
- THD:<15%
- CRI:>80
- SDCM:<5
- Efficiency:>88%
- Surge protection:6KV-20KV
- Working temperature:-30℃/+55℃
- CE RoHS Certified
- Warranty:2/3/5 Years on demands.
Additional Options
- Photocell (Dusk to dawn)/Time control
- Dimming (PWM/0-10V/DALI Dimmable)
- Low voltage input voltage DC12V/DC24V/DC36V/DC48W
