Long Life High Power Led Street Light Fixtures 180W / COB LED Street Lamp for Highway
High power Led Street Light Fixtures 180W COB Lamp black color for High way
Quick Detail:
|
Name |
180W Cob Led Steet light |
Application |
Use for High way |
|
Color |
black |
Feature |
New Design |
|
Lamp Luminous Flux(lm) |
100LM/W |
Certificate |
TUV/UL /CE/ROHS |
Description:

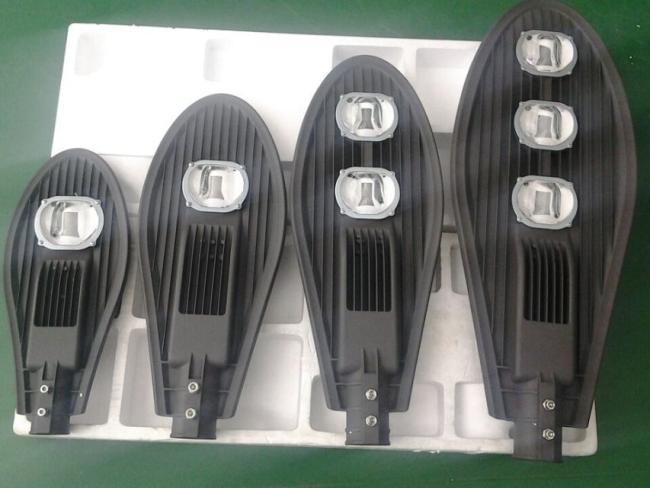

180W LED streetlight made of High quality Die Casting Aluminum housing +Bridgelux LED +MeanWell Driver
1. The latest version of high power COB Street Light Housing,User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.
2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 3pcs of 60W Bridgelus COB led.
3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.
4. IP65 protection grade.
5.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.
Applications:

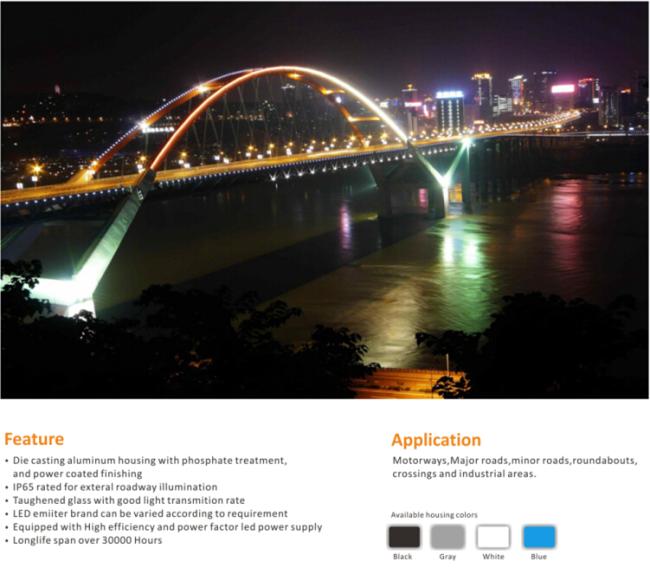

Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
Specifications
|
Model Number |
ZHSL-08-180 |
|
|
Electrical Specifications |
LED QTY |
40W-60W x3PCS |
|
TotaLPower consumption |
MAX.180W |
|
|
Operation Voltage |
85-265VAC or 12VDC or 24VDC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.95 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
8000 lm - Initial |
|
|
7360 lm - Maintain |
|
|
Led Luminous Efficiency |
>90LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Mechanical Specifications |
IP Rating |
IP65 |
|
Warranty |
3Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
Patented anti-glare optic lense |
|
|
Fixture Dimension |
880x340x120MM |
|
|
Fixture Weight |
6.2kgs(13.7lbs) |
|
|
Packing Information |
Packing Type |
1unit /ctn |
|
Packing Dimension |
92.5 x36.5 x16.5 cm (36.4” x14.4” x6.5”) |
|
|
Packing Weight |
7kgs(15.43lbs) |
|
Our service:
your inquiries will be replied in 24 hours in our working days.
- 3years warranty under normal use.
- Professional design provided.
- Timely delivery guaranteed.
