High Power Outdoor LED Street Lights Warm White / Cold White 3000k - 6500k
High Power Outdoor LED Street Lights Warm White / Cold White 3000k - 6500k
Quick Detail:
|
Name |
120W SMD LED Street light |
Application |
Use for Street |
|
Color |
grey |
Feature |
New Design |
|
Lamp Luminous Flux(lm) |
130LM/W |
Certificate |
TUV/UL /CE/ROHS |
Description:

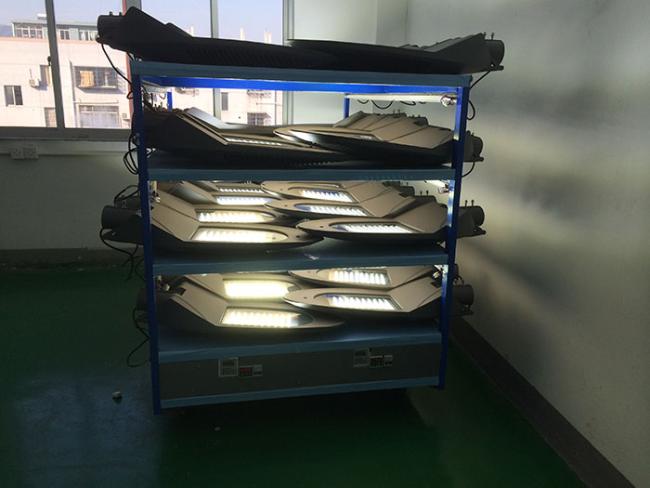

120W LED streetlight made of High quality Die Casting Aluminum housing +Bridgelux LED +MW Driver
1. The latest version of high power SMD LED Street Light Housing,User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.
2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 80pcs of Led.
3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.
4. IP65 protection grade.
5.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
Specifications
|
Model Number |
ZHSL-05-120 |
|
|
Electrical Specifications |
LED QTY |
1Wx60-90PCS |
|
TotaLPower consumption |
MAX.90W |
|
|
Operation Voltage |
85-265VAC or 12VDC or 24VDC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.95 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
8000 lm - Initial |
|
|
7200 lm - Maintain |
|
|
Led Luminous Efficiency |
>90LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Mechanical Specifications |
IP Rating |
IP65 |
|
Warranty |
5Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
tempering glass |
|
|
Fixture Dimension |
864x375x172MM |
|
|
Fixture Weight |
9.5kgs(21lbs) |
|
|
Packing Information |
Packing Type |
1unit /ctn |
|
Packing Dimension |
92 x45 x24 cm (28” x14.2” x7.1”) |
|
|
Packing Weight |
11.2kgs(24.7lbs) |
|
Our service:
your inquiries will be replied in 24 hours in our working days.
- 5years warranty under normal use.
- Professional design provided.
- Timely delivery guaranteed.
