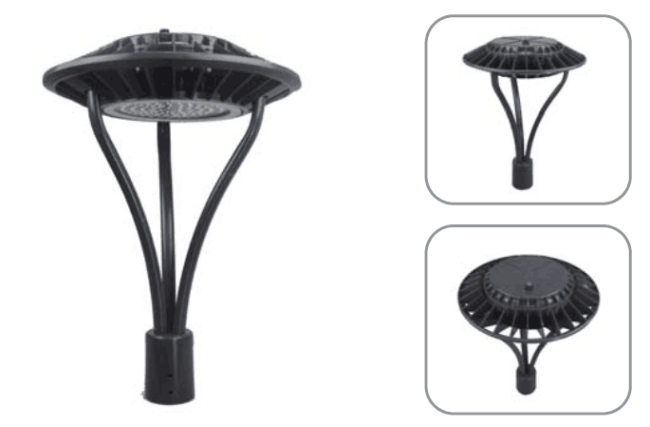

80w factory Aluminium outdoor Urban LED Lighting
50w 60w 80w LED urban light garden light outdoor lamp
Quick Detail:
|
Name |
LED urban light |
Application |
Garden.park.parking lot |
|
Color |
Grey,black,White,or custom color |
Feature |
old Design |
|
Photometric |
60/90 degree |
Certificate |
TUV/UL /CE/ROHS |
Specifications
|
Model Number |
YAUB-04 |
|
|
Electrical Specifications |
LED QTY |
|
|
TotaLPower consumption |
80W |
|
|
Operation Voltage |
110-240VAC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.95 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
10000 lm - Initial |
|
|
12000 lm - Maintain |
|
|
Led Luminous Efficiency |
>130LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Beam Angle |
60/90 degree |
|
|
Mechanical Specifications |
IP Rating |
IP66 |
|
Warranty |
5Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
Patented anti-glare optic lense |
|
|
Fixture Dimension |
617.6*φ348.4MM |
|
|
Fixture Weight |
4.00kgs |
|
|
Packing Information |
Packing Type |
1pcs /ctn |
|
Packing Dimension |
430*450*180mm |
|
|
Packing Weight |
4.50kgs |
|
Advantage:
1.We are Die-casting Factory,can offer shortly delivery time.
2.We are manufacturer who can customized the holes for PCB.
3.We owned the tools.so we can make 3D logo for you
4.We do the painting by ourselves.you can choose any color you want.
