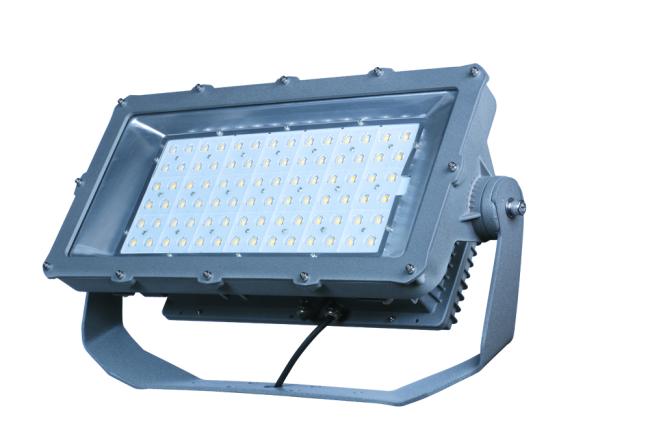

600w Outdoor Sport Court NW Led Stadium Flood Light
China Quality Manufacturer IP65 Waterproof Road Lamp Outdoor LED high mast
| Code | ZHHB-01-200 | ZHHB-01-400 | ZHHB-01-600 |
| Power | 200W | 400W | 600W |
| PC lens degree | 30°60°90° | 30°60°90° | 30°60°90° |
| Color Temperature | 3000-6000K | 3000-6000K | 3000-6000K |
| Efficiency | ＞120LM/W | ＞120LM/W | ＞120LM/W |
| Voltage | AC90-305V 50/60Hz | AC90-305V 50/60Hz | AC90-305V 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 |
| Ambient Temperature | -40-45℃ | -40-45℃ | -40-45℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000 | 50000 | 50000 |
| IP Rate | IP65 | IP65 | IP65 |
| Net Weight | 8kg | 16kg | 24kg |
| Gross Weight | 9kg | 18kg | 27kg |
Main Features
1. High pressure die cast aluminium alloy housing. Anti-corrosion with Electrophoresis process.
2. High performance design with 5050 LED source and exclusive Lens.The light transmittance up to 98%. Luminous efficacy up to 160-170lm/w
3. Type I,Type II,Type III lens optional. Uniform light distribution apply to different street light project.
4. Excellent operating temperature -40°C ~ 50°C
5. Replaceable and upgradeable modular design easy assembly easy installation and easy maintenance.
6. Green product,no UV or IR radiation,no mercury pollution.Passed IEC62471 test.
7. -15 ~ +15° angle adjustable and applicable different mounting arm.
8. With Excellent housing design reach IP66/IK09 rating.
9. Vibration resistant and Surge protection 10KV/20KV.
10. Easy replacement of the entire LED module and electronic system by removing the top cover.
11. Double Clip on closure,"Plug and Play" system suitable for SKD .
12. LEDs with multi-chips Package has high lumen,stable performance,low light failure and no dead lights.
13. Dimming and smart lighting system available upon request.
14. CE,Rohs,CB,LM-79,LM-80 approved.
15. Life-span over 50,000 hours,5 years warranty.
Trading Conditions
1. Payment term: 30% deposit by T/T and 70% before delivery or against Copy of BL.
2. Delivery time: 25 days
3. Samples time: 7 days.
4. Shipping terms: FOB Ningbo.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
