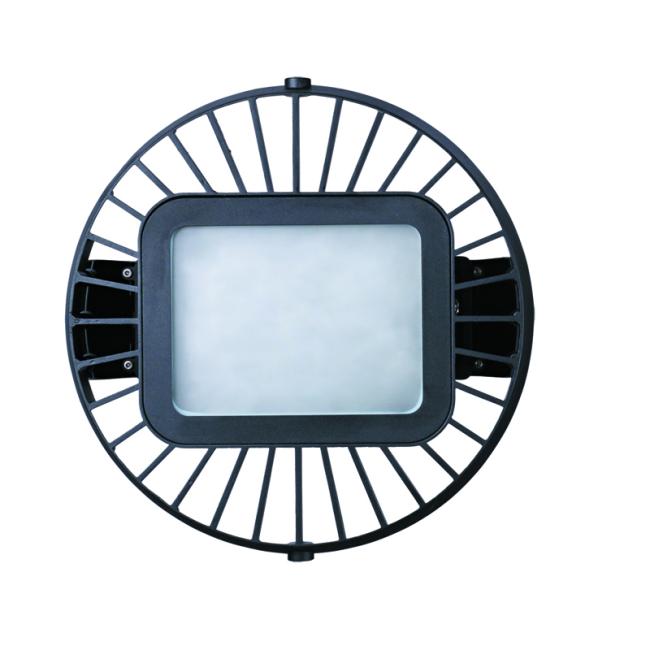

Aluminum Waterproof 80 Watt UFO High Bay Lights AC85-265v
Aluminum Waterproof Led High Bay Lighting Fixtures 80 Watt AC 85 - 265v
Description:
New Patent 80W LED streetlight made of High quality Die Casting Aluminum housing +Bridgelux LED + -Meanwell Driver
1. The latest version of high power SMD high-bay Light Housing
2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 80PCS Bridgelus SMD led.
3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.
4. IP65 protection grade.
5. User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.

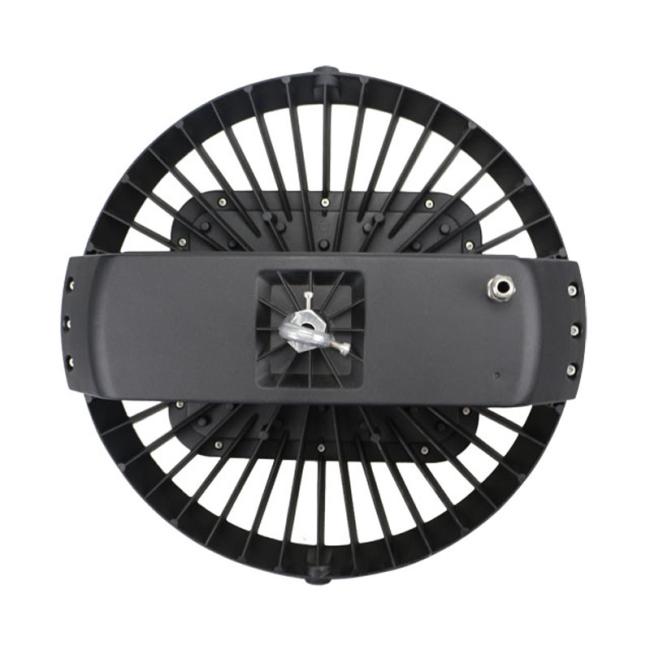

6.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.
Specifications
| Code | ZHHB-02-80 | ZHHB-02-200 |
| Power | 80W | 200W |
| Color Temperature | 3000-6000K | 3000-6000K |
| Efficiency | ＞120LM/W | ＞120LM/W |
| Voltage | AC100-240V | AC100-240V |
| Power Factor | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 |
| Ambient Temperature | -40-45℃ | -40-45℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000 | 50000 |
| IP Rate | IP65 | IP65 |
| Size(mm)L*W*H | 371*364*202 | 464*457*223 |
| Packing | 1pcs | 1pcs |
| Net Weight | 3.2kg | 7.4kg |
| Gross Weight | 4.0kg | 8.6kg |
| Packing Size | 380*380*180mm | 460*460*180mm |
Our service:
your inquiries will be replied in 24 hours in our working days.
- 3years warranty under normal use.
- Professional design provided.
- Timely delivery guaranteed.
