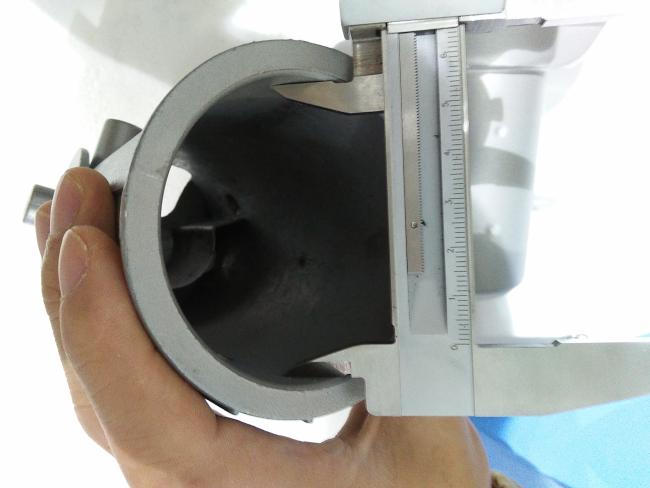

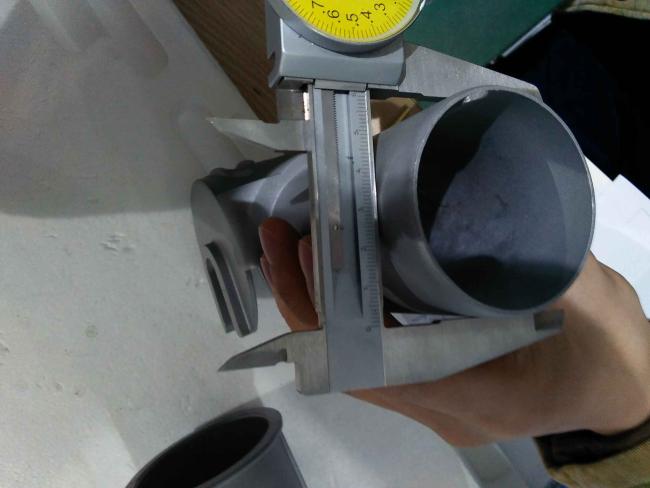

60mm Led Street Light Fixtures Adaptor Bracket Die Cast Aluminum IP65

Part Number:

YAAD-02-6060

Effective Projected Area (EPA):

1.2

Production Lead Time*:

15-25 Days

Shipping:

EXW

Quantity:

1pc

Finish Color: Light Gray (Standard)

Color Temperature:5700K (Standard)

480v Transformer: None

Photocell: None

Product Description:

LED Engine Module

·                     L70 rated LED life of 300,000+ hours

·                     Premium 115° LED chips, 80° beam spread available

·                     Minimum CRI of 70, custom CRI available

·                     Operating temp: -30º C to +60º C

·                     No toxic chemicals/ROHS compliant

·                     Low Tj for long life, low lumen depreciation

·                     CE certified, meets RoHs standards

·                     Eligible for Rebates, Design Lights Consortium® Qualified*

·                     50-80% energy savings

·                     Manufactured in the China

·                     Standard distribution is Type V, others distributions available

Electrical

·                     Standard AC input of 85-265v VAC, up to 480v available

·                     EMI filter: 47CFR, part 2, part 15

·                     Power factor: >0.9

·                     Total harmonic distortion: <20%

·                     Surge protection: IEC/EN 61000-4-5 EMC test standard

·                     Licensed electrician required for installation

Housing

·                     Rugged, fully sealed, die-cast aluminum housing

·                     UV-resistant, multi-layer, architectural color, powder coat finish

·                     High impact, heat resistant, tempered lens

Energy Control Options

·                     Motion detection available

·                     Photo sensors available

·                     California Title 24 requirements available

Technical Specifications

1.                Considered to be a typical HID equivalent. Specific HID wattage equivalents will depend on things like environmental and application characteristics, distribution type(s) and design criteria.

2.                Considered initial nominal value of the LED light engine as specified by the LED chip manufacturer. Fixture efficacy and lumen output will depend on things like housing design, lens clarity, environmental characteristics, color temperature and design criteria.

3.                Considered the typical initial delivered lumens of the LED light engine. Specific lumens for an application will depend on things like fixture size and geometry, environmental characteristics and color temperature.

4.

Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.
