Univeral Used Die Casting Aluminum Outdoor Led Street Light Water Proof 50w SMD Head Radiation Energy Saving
Aluminum Outdoor Led Street Light Water Proof 50w SMD Head Radiation Energy Saving
Description:

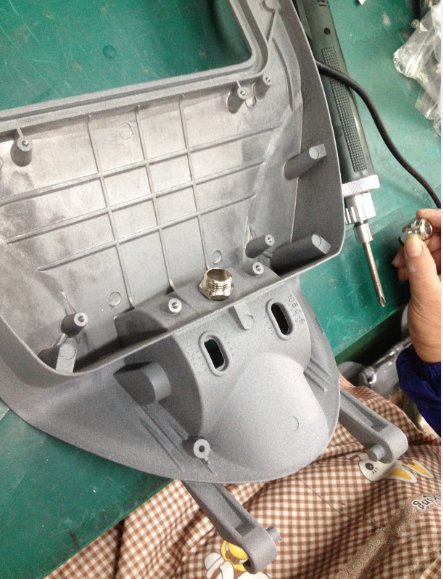

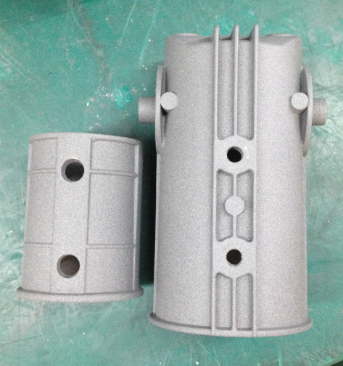

New Patent 50W SMD LED streetlight made of High quality Die Casting Aluminum housing
1. The latest version of high power SMD LED Street Light Housing
2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system

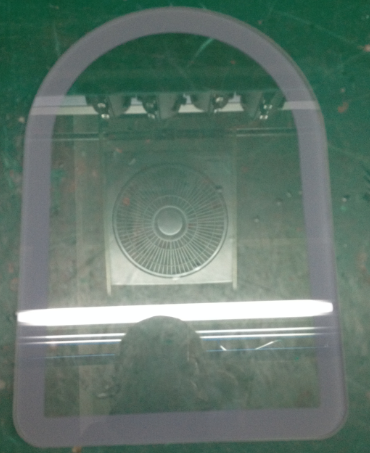

3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.
4. IP65 protection grade.

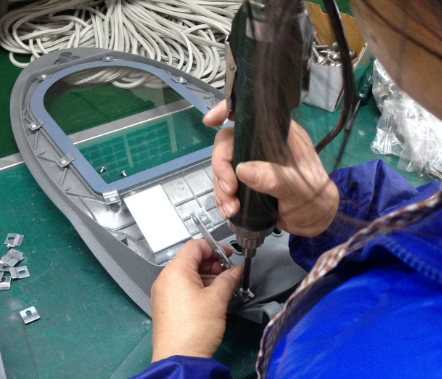

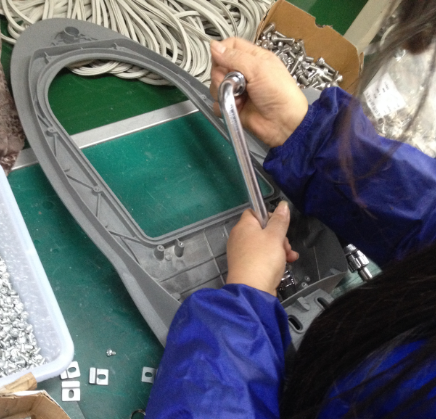

5. User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.
6.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.
Applications:
minor roads,Motorways,Major roads,roundabouts,crossing and industrial areas.
Specifications
|
Model Number |
ZHSL-05-50 (50W0 |
|
|
Electrical Specifications |
LED QTY |
1Wx50PCS |
|
TotaLPower consumption |
50W |
|
|
Operation Voltage |
85-265VAC or 12VDC or 24VDC |
|
|
Operating Humidity |
10%~90% |
|
|
Working Temperature |
-30 ~ 50°C |
|
|
Power Fact(PF) |
>0.95 |
|
|
Driver Efficiency |
> 0.9 |
|
|
Photometric Specifications |
LED Luminous Flux |
6120 lm - Initial |
|
|
5990 lm - Maintain |
|
|
Led Luminous Efficiency |
>90LM/W |
|
|
CRI |
Ra ≥ 70 |
|
|
LED Color |
3000k-6500k |
|
|
Mechanical Specifications |
IP Rating |
IP65 |
|
Warranty |
3Years |
|
|
Heat Radiator |
die-casting body as heat sink |
|
|
Lens |
tempering glass |
|
|
Fixture Dimension |
69.5x30x11.9MM |
|
|
Fixture Weight |
6.8kgs(15lbs) |
|
|
Packing Information |
Packing Type |
1unit /ctn |
|
Packing Dimension |
78.5x39x21.5 cm (30.9” x15.4” x8.5”) |
|
|
Packing Weight |
7.8kgs(17.2lbs) |
|
