Multifunctional LED Street Lighting Led 2700k - 6500k traditional street light IP66 IK08 CE RoHs
High Power Water Proof Exterior Street Lighting Led 2700k - 6500k

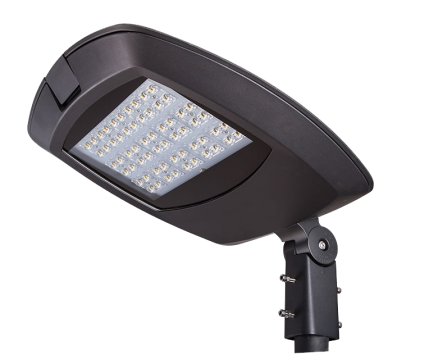

LED Street Light
ZHSL-12A
Installing Ways:
Both Horizontal and Vertical available and
adjustable angle -30 °to 30 °
Material:
Die casting body
Ultra clear tempered glass and PC lens
| Code | ZHSL12A-50 | ZHSL12A-120 |
| Power | 80W max | 150W Max |
| Color Temperature | 3000-6500K | 3000-6500K |
| Efficiency | ＞120LM/W | ＞120LM/W |
| Voltage | AC100-240V | AC100-240V |
| Power Factor | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 |
| Ambient Temperature | -40-45℃ | -40-45℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000 | 50000 |
| Installation Pipe Diameter | Φ60mm | Φ60mm |
| Installation Height | 7-9m | 8-12m |
| Net Weight | 6.2kg | 9.8kg |
| Gross Weight | 7.3kg | 11.3kg |
| Packing Size(mm) | 495*495*155 | 700*570*165 |
| Code | ZHSL12A-50 | ZHSL12A-120 |
| L (mm) | 603 | 711 |
| W(mm) | 416 | 522 |
| H (mm) | 132 | 132 |
Features:
- European standard high-pressure aluminium housing material ADC-3
-Patented Ribbon-Free housing technology
- Excellent thermal management
- Outstanding self-cleaning capability
- Patented optics for increased application efficiency
- Post-top or side-entry mounted +10° or -10° title
- Toughed glass with 4mm thickness, IK08 Impact Resistance; IK09 with 5mm glass optional
LED Engine Module
LED life time of 100,000 hours at 25℃ ambient temperature
Lumiaire efficiency: 110-130lm/w
CCT: 4000k (3000K/ 5000K/ 5700K upon request)
CRI: >70; >80 (upon request)
Operating temperature range: -30 to 45 ℃
Electrical
MeanWell / Inventronics optional (other brand of driver upon request)
Class I or Class II
Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz
10KV/20KV SPD
Power automatically switch off when opening
Dimming:
Dali
1-10V
PWM
AstroDIM for autonomous dimming with five independent levels
Smart control management system
Options:
Photocell
Surge protection device (up to 20KV)
0.5m External cable(Other length upon request)
Smart control device
Motion detection
Standards & Certifications:
CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending
