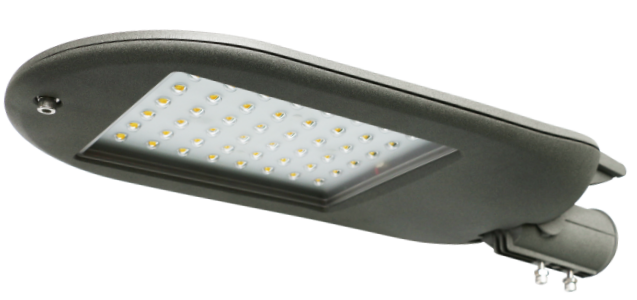

150W High Power LED Street Light IP66 IK08 Die-casting Aluminium For Roadway

Waterproof External Outdoor Led Street Lights For Roadway Urban Lighting Systerms

Item No.: SL-09-150

LED Engine Module

·                     LED life time of 30,000+ hours

·                     High power integrated packaging LED chips, 120° beam spread available

·                     Minimum CRI of 70, custom CRI available

·                     Operating temp: -30º C to +60º C

·                     No toxic chemicals / ROHS compliant

·                     Low Tj for long life, low lumen depreciation

·                     CE certified, meets ROHS standards

·                     Eligible for Rebates, Design Lights Consortium® Qualified*

·                     50-80% energy savings

·                     Manufactured in the China

·                     Standard distribution is Type V, others distributions available
Electrical

·                     Standard AC input of 85-265v VAC, up to 480v available

·                     EMI filter: 47CFR, part 2, part 15

·                     Power factor: >0.9

·                     Total harmonic distortion: <20%

·                     Surge protection: IEC/EN 61000-4-5 EMC test standard

·                     Licensed electrician required for installation

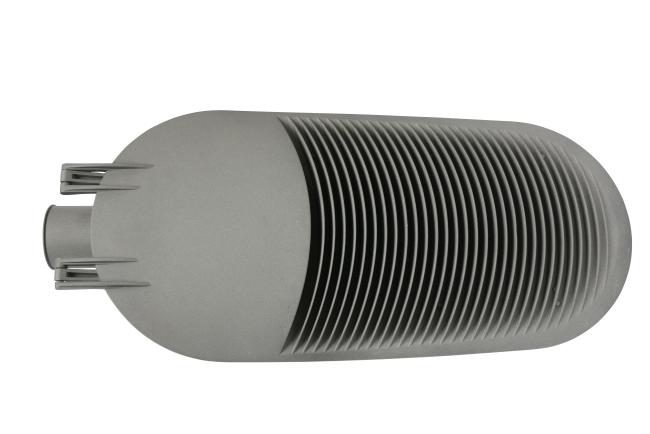

Housing

·                     Rugged, fully sealed, die-cast aluminum housing

·                     UV-resistant, multi-layer, architectural color, powder coat finish

·                     High impact, heat resistant, tempered lens
Energy Control Options

·                     Motion detection available

·                     Photo sensors available

Application:
Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.

Available housing colors: Black, Grey, White.
