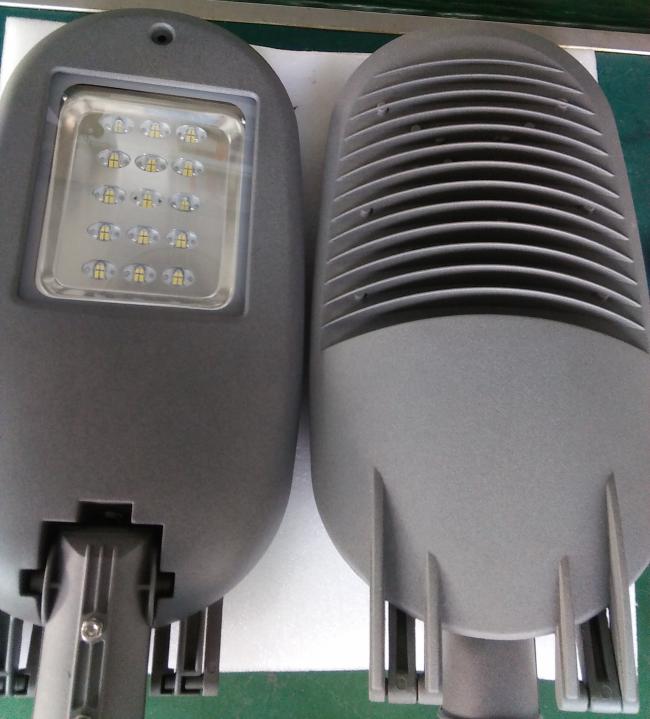

50W 60Watt Die-casting Aluminium ADC12 Outdoor Area Lighting IP66 IK09 with strength adjustable adapter

 LED STREET LIGHT FIXTURE WITH HIGH EFFICIENCY

Item No.: ZHSL-09-50


Product specification:

LED Engine Module


·                     LED life time of 30,000+ hours

·                     High power integrated packaging LED chips, 120° beam spread available

·                     Minimum CRI of 70, custom CRI available

·                     Operating temp: -30º C to +60º C

·                     No toxic chemicals / ROHS compliant

·                     Low Tj for long life, low lumen depreciation

·                     CE certified, meets ROHS standards

·                     Eligible for Rebates, Design Lights Consortium® Qualified*

·                     50-80% energy savings

·                     Manufactured in the China

·                     Standard distribution is Type V, others distributions available
Electrical

·                     Standard AC input of 85-265v VAC, up to 480v available

·                     EMI filter: 47CFR, part 2, part 15

·                     Power factor: >0.9

·                     Total harmonic distortion: <20%

·                     Surge protection: IEC/EN 61000-4-5 EMC test standard

·                     Licensed electrician required for installation
Housing

·                     Rugged, fully sealed, die-cast aluminum housing

·                     UV-resistant, multi-layer, architectural color, powder coat finish

·                     High impact, heat resistant, tempered lens
Energy Control Options

·                     Motion detection available

·                     Photo sensors available


Feature
.Die casting aluminum body with anti-corrosion treatment.
.Highly polished aluminum reflector.
.Toughened glass with good light transmition rate.
.IP65 Rated for external use
.Equipped with LG/CREE LED chip, generate high luminous flux
.LED emiiter brand can be varied according to requirement.
.High efficient and power factor LED power supply.
.Longlife span over 50000 Hours.
.Obtain a 50-70% Energy Saving compared with Halogen Lamps.

Application:
Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas.

Available housing colors: Black, Grey, White.
