Professional LED Street Light Fixtures 60 W Led Commercial Light Fixtures
Price:
negotiation
MOQ:
10pcs
Delivery Time:
30-40days
Brand:
DIE-CASTING MAN
Product Description

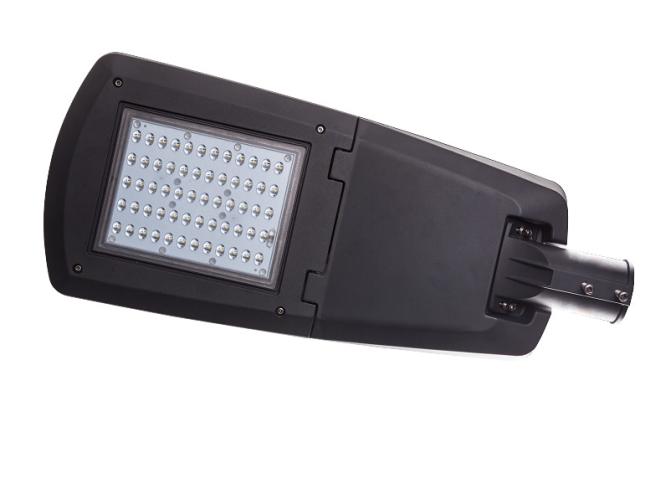

Professional LED Street Light Fixtures 60 W Led Commercial Light Fixtures
ZHSL-11 Family Product Specification
| Product Code | ZHSL-11B-40 | ZHSL-11B-50 | ZHSL-11B-120 |
| Input Wattage | 40W | 60W | 120W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 4400-4800lm | 6900-7500lm | 13800-15600lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-8m | 6-10m | 8-12m |
| Net Weight | 3.5kgs | 5.3kgs | 8.8kgs |
| Gross Weight | 3.9kgs | 5.8kgs | 9.3kgs |
| Packing Size(mm) | 600*270*155 | 695*285*130 | 850*370*215 |
| Product Size(mm) | 581*220*157 | 655*256*162 | 785*320*180 |
Photometric Data
Line Drawing
Product Description
* This series is a high-performance street lighting available in three size
*The luminaire is manufactured from high pressure die-casting aluminum
* It shall have a led efficiency up to 120lm/w and will be capable of producing up to 18000luminair lumens at 4000K finished in grey or black as standard.
