60mm pole nw aluminum industrial led street light housing IP66 IK08
High Efficient Aluminium LED Street Light Housing IP66 IK08 Complete Lamp
Product Specification
*Item No.:ZHSL-11B-120
*Input Wattage:120W
*Color Temperature:3000-6500K
*Led Lifetime:50000h
*NW/GW:8.8/9.3kgs
*Packing Size:85*37*21.5cm
Product Description
*ZHSL-11 family is a high-performance street light available in three size
*ZHSL-11B-120 is the biggest one
*Product Size:785*320*180mm
*Finish:power coating,general colour will be :double grey/sandy black/matt silver
Product Material
*Die casting aluminum body
*Ultra clear tempered glass and PC lens
Product Specification
| Product Code | ZHSL-11B-40 | ZHSL-11B-50 | ZHSL-11B-120 |
| Input Wattage | 40W | 60W | 120W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 4400-4800lm | 6900-7500lm | 13800-15600lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-8m | 6-10m | 8-12m |
| Net Weight | 3.5kgs | 5.3kgs | 8.8kgs |
| Gross Weight | 3.9kgs | 5.8kgs | 9.3kgs |
| Packing Size(mm) | 600*270*155 | 695*285*130 | 850*370*215 |
| Product Size(mm) | 581*220*157 | 655*256*162 | 785*320*180 |
Line Drawing
Equipment

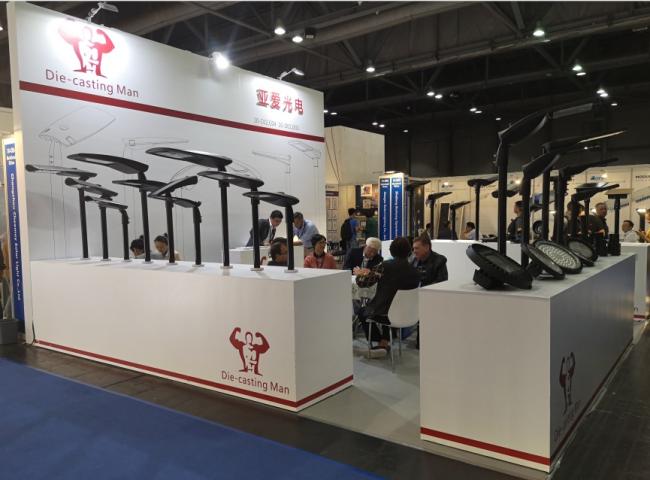

Exihibition
Company profile
* With more than 2 decades years experience.
* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.
* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.
* ISO9001 quality control system.
* 5-7years guarantee
FAQ
1. How can I make order?
1)Pls send us the inquiry or contact with us if you have any questions before order. we will reply you ASAP.
2)We will issue the PI according to your specific requirement.
3)The goods will be sent out upon getting full payment.
2. What is the MOQ?
Any order quantity is welcome,mixed or samples order is also accepted.
3. How about the Delivery Time?
30 days after order deposit reaching us.3-7days for sample order.
4. What's your Warranty Policy?
60 Months' warranty is provided.
5. What's your Payment Method?
We usually accept the payment methods including PayPal, TT, or Western Union.
30% deposit in advance and balance before shipping. the buyer can choose which payment ways that you accept.
6. What's your Shipping Method?
We can delivery the goods by sea, air, express.it 's depend on your requirements.
