CE Road 6500K 150lm/W 100W Outdoor LED Street Lights
Customized Color IP66 140lm/w high efficiency Aluminium LED Street Light Fixtures 30W, 40W,50W,80W,100W,120W,150W,180W,200W
Product Material
*Die casting aluminum body
*Ultra clear tempered glass and PC lens
Product Specification
| Product Code | ZHSL-19-50 | ZHSL-19-80 | ZHSL-19-150 |
| Input Wattage | 50W | 80W | 150W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 5500-6250lm | 9200-10400lm | 17250-19500lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-6m | 6-10m | 8-12m |
| Net Weight | 3.7kgs | 6.2kgs | 7.4kgs |
| Gross Weight | 4.2kgs | 6.5kgs | 8.0kgs |
| Packing Size(mm) | 620*270*155 | 670*310*155 | 810*340*155 |
| Product Size(mm) | 577*233*103 | 627*271*103 | 768*301*104 |
Die-casting Man Workshop

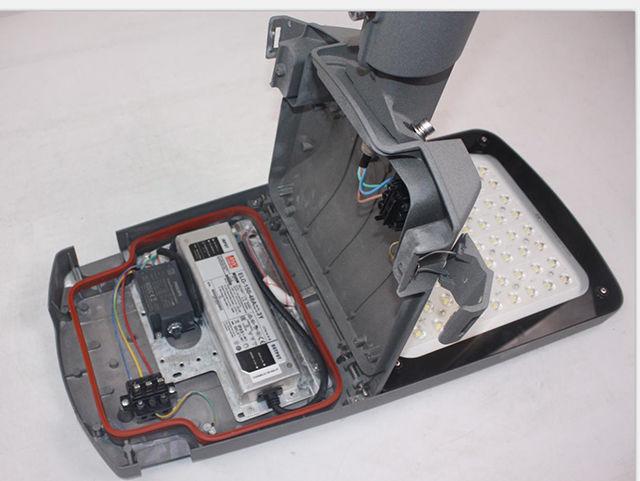

Products Details
Company profile
* A professional origin die-casting manufacturer of led outdoor light.
* With more than 2 decades years experience.
* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City
* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.
* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.
* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.
* 6 elite designers & engineers, developing 8-12 new styles every year.
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* 5-7years guarantee
* ODM and OEM service are both available to customers domestic and overseas.
