150W LED street light empty housing with knife switch body Material Die-casting Aluminium
Price:
Negotiable
MOQ:
10PCS
Delivery Time:
7-30days
Brand:
Die-casting Man
Product Description

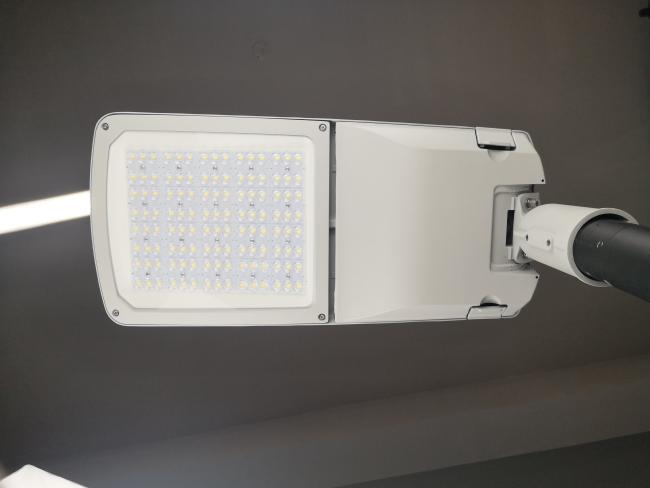

150W Customized RAL NO. IP66 140lm/w high efficiency Aluminium LED Road Lighting Fixtures
YASL-19-150

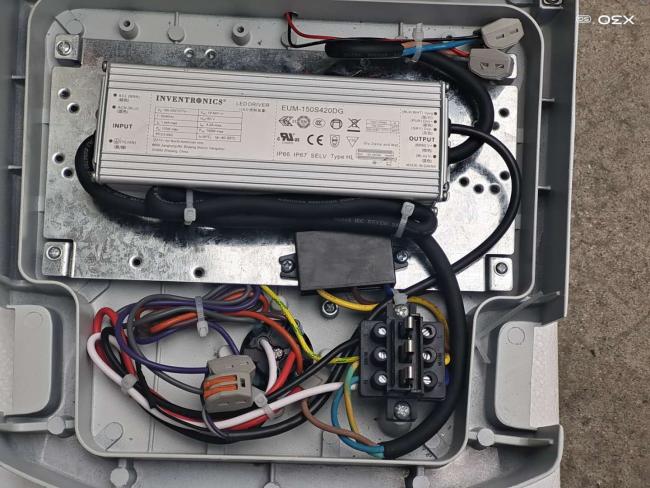

Wit 3030 chip, and Invetronics driver.
At least 5 years guarantee letter.
Pass ENEC, CB, CE, RoHs certifcation.
Material
Die casting aluminum body pass SGS test.
Ultra clear tempered glass and PC lens
Painting can be C3, C4 if needed.
Product Specification
| Product Code | ZHSL-19-50 | ZHSL-19-80 | ZHSL-19-150 |
| Input Wattage | 50W | 80W | 150W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 5500-6250lm | 9200-10400lm | 17250-19500lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-6m | 6-10m | 8-12m |
| Net Weight | 3.7kgs | 6.2kgs | 7.4kgs |
| Gross Weight | 4.2kgs | 6.5kgs | 8.0kgs |
| Packing Size(mm) | 620*270*155 | 670*310*155 | 810*340*155 |
| Product Size(mm) | 577*233*103 | 627*271*103 | 768*301*104 |

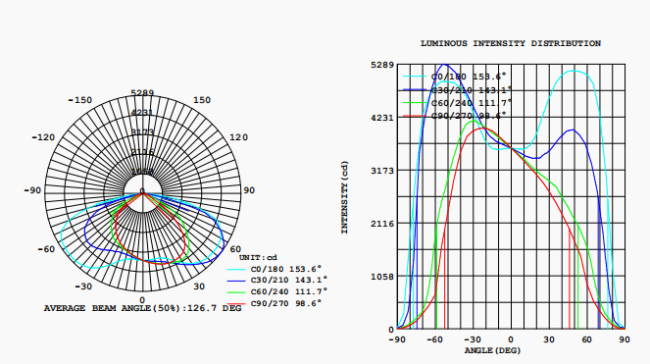

Light Distribution test
Products Details
