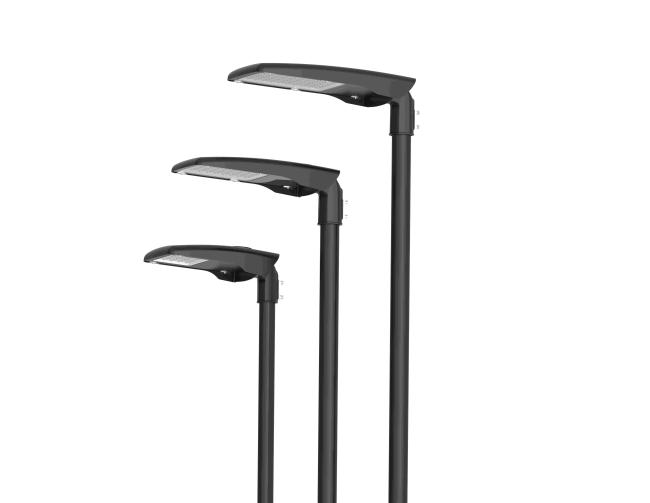

120w 150lm/W Efficiency Ip66 Led Street Light Housing
120W LED street light Beautiful and generous on appearance with 150lm/w high efficiency
Product Material
Both Horizontal and Vertical available
and adjustable angle-15°to15°
Product Specification
| Product Code | YASL-24-40 | YASL-24-60 | YASL-24-120 | YASL-24-200 | ||||||||||
| Input Wattage | 40W | 60W | 120W | 200W | ||||||||||
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K | ||||||||||
| Luminous Flux | 5600-6000lm | 8400-9000lm | 16800-18000lm | 28000-300000lm | ||||||||||
| Input Voltage | AC90-305V | AC90-305V | AC90-305V | AC90-305V | ||||||||||
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | ||||||||||
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | ||||||||||
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | ||||||||||
| Temperature of Working Condition | -40～50℃ | -40～50℃ | -40～50℃ | -40～50℃ | ||||||||||
| Humidity of Working Condition | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | ||||||||||
| LED Lifetime | 50000h | 50000h | 50000h | 50000h | ||||||||||
| Protectin Grade | IP66 | IP66 | IP66 | IP66 | ||||||||||
| Installation Pipe Diameter | φ50mm | φ50mm | φ60mm | φ60mm | ||||||||||
| Installation Height | 4-6m | 5-8m | 7-10m | 10-14m | ||||||||||
| Net Weight | 2.8 kg | 3.3 kg | 4.5 kg | 6.2 kg | ||||||||||
| Gross Weight | 3.3 kg | 4.0 kg | 5.3 kg | 7.0 kg | ||||||||||
| Packing Size | 500*249*150mm | 500*300*150mm | 630*300*150mm | 680*350*160mm |
Die-casting Man Workshop
Company profile
* A professional origin die-casting manufacturer of led outdoor light.
* With more than 2 decades years experience.
* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City
* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.
* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.
* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.
* 6 elite designers & engineers, developing 8-12 new styles every year.
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* 5-7years guarantee
* ODM and OEM service are both available to customers domestic and overseas.
