CE ENEC Aluminium Shell Led Streetlight For Main Road 80W
Price:
Negotiation
MOQ:
1pc
Delivery Time:
7-40 days base on order quantity
Brand:
Die Casting Man
Product Description
Domestic Manufacturers factory Suppliers Street Light Shell for main road
Product Specification
1.Street Light Shell Introduction
This Street Light Shell was the latest invention and high quality with TUV CE ENEC CB IP66 and offer 5 years Warranty.
It was made up with Die Casting Aluminium and Tempered glass.
We devoted ourselves to the lighting industry many years, covering most of Europe, Middle East, Asia and Africa Market. We are expecting become your long-term partner in china.

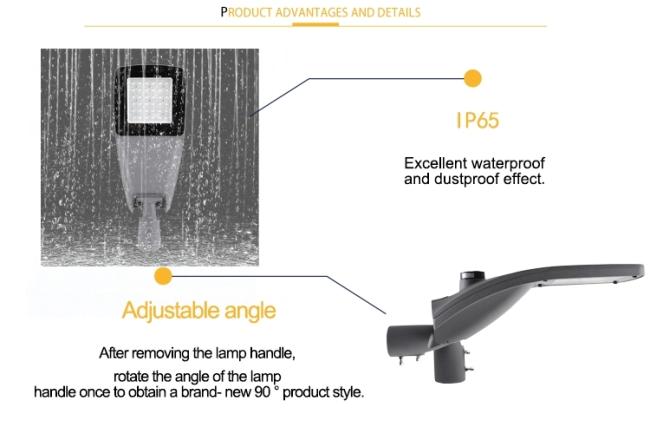

lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-10°to+10°
Street Light Shell Specification
|
Product Code
|
YASL-18-30M
|
YASL-18-80M
|
YASL-18-150M
|
|
Input Wattage
|
20w 30w 40w 50W 60w
|
80w 100W 120w
|
150w 180w 200W 240w
|
|
Color Temperature
|
2700K 3000K 4000K 5700K 6500K
|
||
|
Luminous Flux
|
6500-7250lm
|
13000-15000lm
|
26000-28000lm
|
|
Input Voltage
|
AC90～305V
|
AC90～305V
|
AC90～305V
|
|
Frequency Range
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|
Power Factor
|
PF≥0.95
|
PF≥0.95
|
PF≥0.95
|
|
color rendering index
|
Ra≥70
|
Ra≥70
|
Ra≥70
|
|
Temperature of Working Condition
|
-40～50℃
|
-40～50℃
|
-40～50℃
|
|
Humidity of Working Condition
|
20%～90%RH
|
20%～90%RH
|
20%～90%RH
|
|
LED Lifetime
|
50000h
|
50000h
|
50000h
|
|
Protectin Grade
|
IP66
|
IP66
|
IP66
|
|
Protection level
|
IK08 IK09 IK10
|
||
|
Installation Pipe Diameter
|
φ45/60mm
|
φ45/60mm
|
φ45/60mm
|
|
Installation Height
|
4-8m
|
6-12m
|
10-14m
|
|
Net Weight
|
3.0kgs
|
6.0kgs
|
7.4kgs
|
|
Gross Weight
|
3.5kgs
|
6.5kgs
|
8.0kgs
|
|
Packing Size(m m)
|
620*245*185
|
720*320*210
|
820*340*210
|

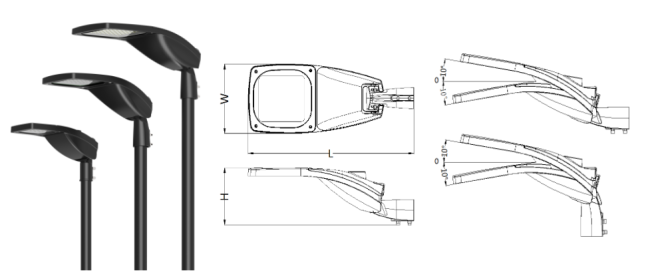

Product Size
|
Product Code
|
YASL-18-30M
|
YASL-18-80M
|
YASL-18-150M
|
|
L(mm)
|
515
|
644
|
740
|
|
W(mm)
|
182
|
270
|
308
|
|
H(mm)
|
159
|
223
|
225
|
LED Street Light ASL-18 Product Description
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
