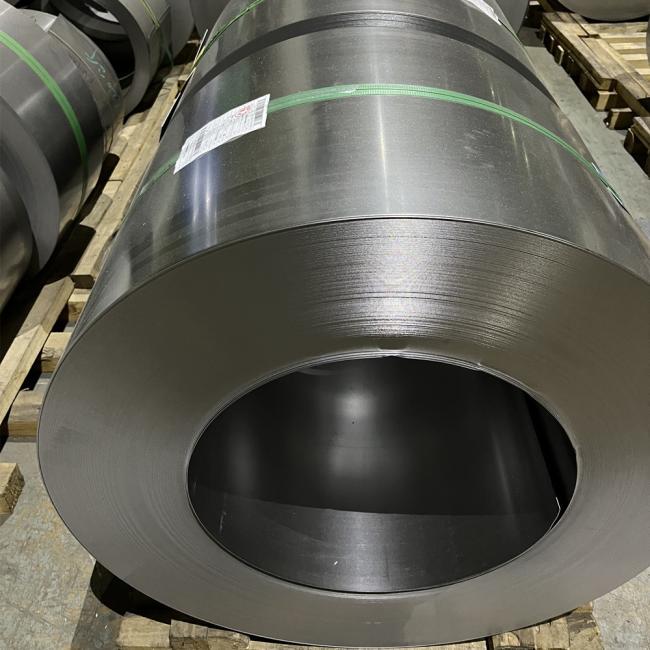

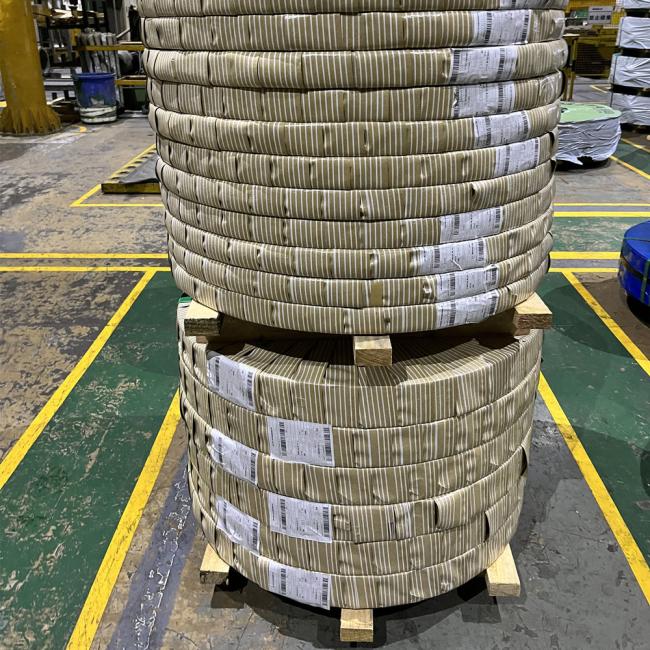

DIN1.4512 SUS436L Stainless Steel Coil Strip 2D Surface 1.0*153.4mm For Weld Pipe
Price:
2.54 USD/KG
MOQ:
300KGS
Delivery Time:
7 Days
Brand:
MITTEL TISCO BAO STEEL
Product Description
DIN1.4512 SUS436L Stainless Steel Coil Strip 2D Surface 1.0*153.4mm Used For Weld Pipe
Stainless Steel JIS SUS436L Plate Specifications
| Specifications | ASTM A240, ASME SA240 |
| Standards | JIS G 4304 : Hot-rolled stainless steel plate, sheet and strip JIS G 4305 : Cold-rolled stainless steel plate, sheet and strip |
| Grade | JIS SUS436L -400 Series |
| Width | 1250mm / 1500mm |
| Thickness | Cold rolled:0.5-3.0mm Hot rolled:3mm-12mm |
| Length | 2000mm to 6000mm or as customer’s request |
| Dimensions | AISI, ASTM, DIN, GB, JIS, SUS |
| Surface | surface and finish of stainless steel sheets |
| Material | Ferritic Stainless Steel |
| Processes | Hot Rolled,Cold Rolled |
| Surface | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D, Hairline, Mirror finish, Brush, Polished, Sand blast |
JIS SUS436L Sheet, Plate & Coil Equivalent
| Standard Number | Material | Standard | Country |
| G 4305 | SUS436L | JIS | Japan |
Grade Stainless Steel JIS SUS436L Plate Properties
ASTM A240 JIS SUS436L Plate Chemical Composition
| Grade | C(％) | Si(％) | Mn(％) | P(％) | S(％) | Cr(％) | Ni(％) | Ni(％) | Mo(％) | N(%) |
|---|---|---|---|---|---|---|---|---|---|---|
| JIS SUS436L | 0.025 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 16.00-19.00 | 0.60 max | 0.025 max | – | – |
Stainless Steel JIS SUS436L Sheet Plate Mechanical Properties
| JIS Grade | Yield Strength(MPa) | Tensile Strength(MPa) | % Elongation in 2 in.(50mm) min | Hardness Brinell HBW / HB | Rockwell B HRBS / HRB | HV |
|---|---|---|---|---|---|---|
| SUS436L | 245 | 410 | 20 | 217 | 96 | 230 |
