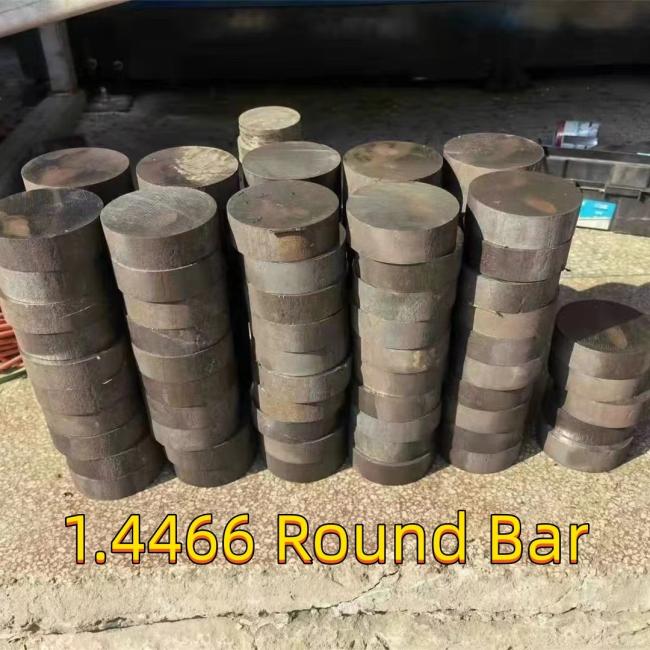

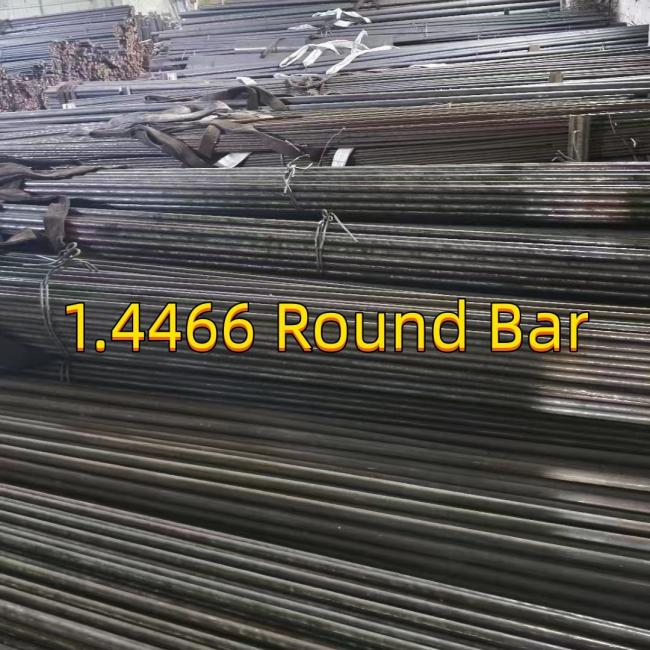

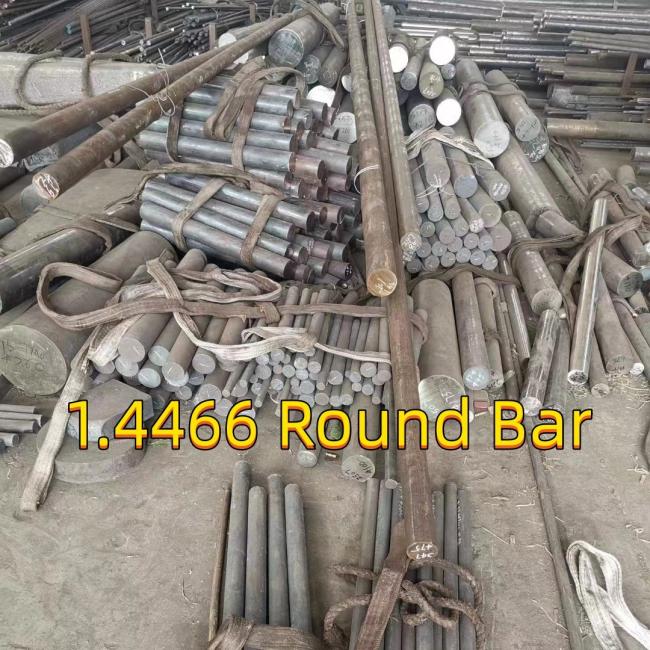

DIN 1.4466 Stainless Steel Round Bar AISI 310MOLN S31050 X1CrNiMoN25-22-2 60mm
Price:
6.5 USD/KG
MOQ:
100KGS
Delivery Time:
7 Days
Brand:
MITTEL TISCO BAO STEEL
Product Description
AISI 310MOLN S31050 X1CrNiMoN25-22-2 DIN 1.4466 Stainless Steel Round Bar
| Product Name | 310MoLN DIN 1.4466 Stainless steel UNS S31050 Round Bar |
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6 etc | |
| Alloy : Alloy 20/28/31; | |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g; | |
|
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
|
| Haynes: Haynes 230/556/188; | |
| Inconel Series: | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20; | |
| Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
| Incoloy: Incoloy 800/800H/800HT/825/925/926; | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
| Monel: Monel 400/K500/R405 | |
| Nitronic: Nitronic 40/50/60; | |
| Nimonic: Nimonic 75/80A/90/A263 ; | |
| Specification | Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Product Characteristics |
1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
| Application | High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines |
| Packaging | 1. cases packed in wooden cases 2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products |
| Delivery | 7-25days or according to the product |
| Payment | L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments for offline orders. |
TECHNICAL SPECIFICATION DATASHEET - BS X1CrNiMoN25-22-2 / 1.4466
MATERIAL CATEGORY: Stainless steel round bar, wire rod, and semi-finished products
STEEL TYPE: Austenitic series
MATERIAL SPECIFICATIONS: BS EN 10083-3 (2005)
CHEMICAL COMPOSITION (mass weight %)
Carbon, C (％): ≤ 0.020
Silicon, Si (％): ≤ 0.70
Manganese, Mn (％): ≤ 2.00
Phosphours, P (％)≤: 0.025
Sulfur, S (％)≤: 0.010
Silicon, Si (％): ≤ 0.70
Manganese, Mn (％): ≤ 2.00
Phosphours, P (％)≤: 0.025
Sulfur, S (％)≤: 0.010
Chromium, Cr (％): 24.0 ~ 26.0
Nickel, Ni (％): 21.0 ~ 23.0
Molybdenum, Mo (％): 2.00 ~ 2.50
Nickel, Ni (％): 21.0 ~ 23.0
Molybdenum, Mo (％): 2.00 ~ 2.50
Nitrogen, N (％): 0.10 ~ 0.16
MECHANICAL PROPERTIES / INTERGRANULAR CORROSION RESISTANT TENDENCY
Thickness Diameter (d)/≤mm: 160
Hardness HBS: 240
Yield strength σ0.2≥/MPa: 250
Tensile strength σb/MPa: 540～740
Yield strength σ0.2≥/MPa: 250
Tensile strength σb/MPa: 540～740
Elongation δ(longitudinal )≥(％): 35
Elongation δ(transversal )≥(％): -
Impact absorbing energy Akv≥/J|longitudinal: 100
Impact absorbing energy Akv≥/J|transversal: -
Intergranular corrosion resistance tendency | condition of delivery: Yes
Intergranular corrosion resistance tendency | condition of welding: Yes
Impact absorbing energy Akv≥/J|transversal: -
Intergranular corrosion resistance tendency | condition of delivery: Yes
Intergranular corrosion resistance tendency | condition of welding: Yes
Thickness Diameter (d)/≤mm: 160 < d ≤ 250
Hardness HBS: 240
Yield strength σ0.2≥/MPa: 250
Tensile strength σb/MPa: 540～740
Yield strength σ0.2≥/MPa: 250
Tensile strength σb/MPa: 540～740
Elongation δ(longitudinal )≥(％): -
Elongation δ(transversal )≥(％): 30
Impact absorbing energy Akv≥/J|longitudinal: -
Impact absorbing energy Akv≥/J|transversal: 60
Intergranular corrosion resistance tendency | condition of delivery: Yes
Intergranular corrosion resistance tendency | condition of welding: Yes
Impact absorbing energy Akv≥/J|transversal: 60
Intergranular corrosion resistance tendency | condition of delivery: Yes
Intergranular corrosion resistance tendency | condition of welding: Yes
What is the material standard for delivery?
Our executive standard is ASTMA240.
How to comfirm the sizes of products?
Measurements can be made . After production, we will measure the size, mark the tolerances and confirm with the customer
Could you send me a quotation?
Sure! Before that ,please kindly send us the following:size,quantity,surface,grade,the more detailed ,the better can we further our business.
Could you send me a quotation?
Sure! Before that ,please kindly send us the following:size,quantity,surface,grade,the more detailed ,the better can we further our business.
How to confirm material?
We have a PMI tester imported from Germany, which is used for testing material, confirming ingredients and proportion
How to guarantee delivery time?
The contract will indicate the time of delivery:7-15 working days in general.
How to guarantee delivery time?
The contract will indicate the time of delivery:7-15 working days in general.
What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. LC at sight is also alternative.
