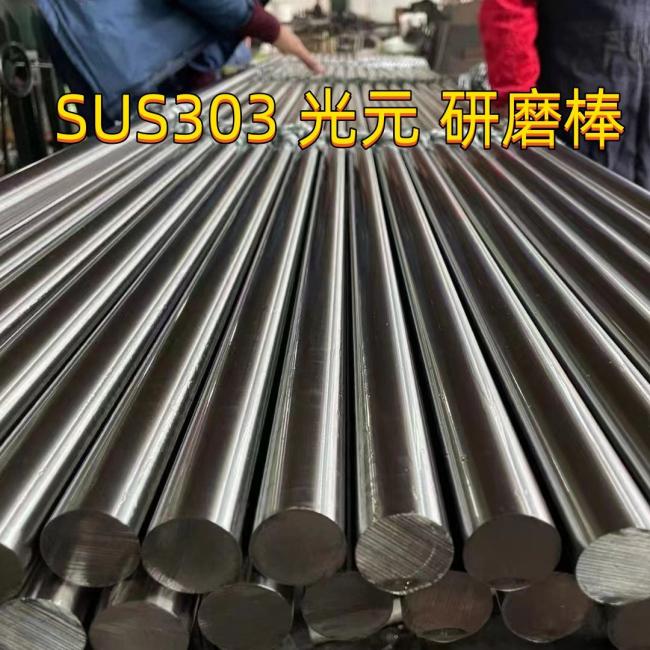

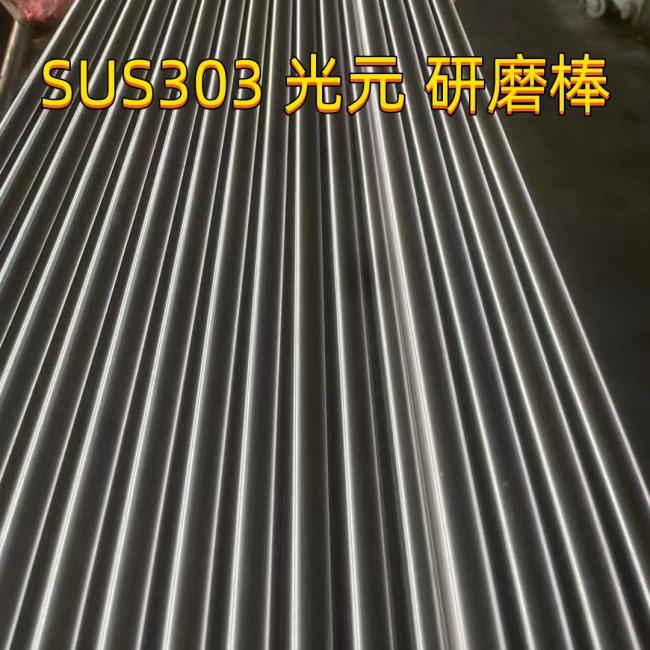

ASTM A582 SUS 303 Peeled Round Bar JIS G4303 φ35mm X 3,000mm
SUS 303 Peeled Round Bar (JIS G4303) φ35mm x 3,000mm(L)
303 STAINLESS STEEL BAR
303 (UNS 30300) stainless steel bars were developed for machining. Type 303 has a higher concentration of sulfur reducing the drag on cutting tools. It allows greater machining speeds and lower production costs. The alloy is useful whenever a need arises for good corrosion resistance and considerable machining is required.
Austenitic steels have austenite as their primary phase (face centered cubic crystal). These are alloys containing chromium and nickel (sometimes manganese and nitrogen), structured around the Type 302 composition of iron, 18% chromium, and 8% nickel. Austenitic steels are not hardenable by heat treatment. The most familiar stainless steel is probably Type 304, sometimes called T304 or simply 304. Type 304 surgical stainless steel is austenitic steel containing 18-20% chromium and 8-10% nickel.
| Product Name | Stainless Steel Round Bar |
| Standard | AISI, ASTM, EN, BS, GB, DIN, JIS, SUS |
| Size | Diameter: 2mm - 400 mm or as customer's requirement Length: 1m-6m or as customer's requirement |
| Theoretical Weight(kg/m) | Diameter(mm)x Diameter(mm) x 0.00623 |
| Dia Tolerance | H9/H11 /H13,or requirement |
| Materials | 201,202,302,303,303Cu, 304,304L, 304H, 31 OS, 316,316L, 317L, 321,31 OS 309S, 410,41 OS,420,430,431,440A,9041f2205,2507 |
| Surface | Polishing, Bright, Black, Satin, 400#, 600^1000# mirrorx, HL brushed, Brushed Mirror, Pickled, Peeled (two kinds of finishing for one pipe) |
| Treatment/Technique | Hot rolled, cold drawn. Annealed, Grinding, Forged, Centerless Grinding |
| Applications | Decorative/industrial/building material |
| Inspection | ISO,BVSGS,MTC |
| Trade Terms | EXW, FOB, CFR, CIF |
| Packing | Standard sea-worthy package or as required |
| Supply Ability | 1000 metric tons/month |
| MOQ | 1 metric ton |
| Shipment time | Within 8-14 workdays after receiving deposit or L/C |
| SEAWORTHY PACKING | 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM 40ft GP: 11.8m(length)x 2.13m(width) x 2.18m(high) about 54CBM 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM |
| 300 Series Stainless Steel Grades | 301, 302, 303, 304/L, 304H, 309/S, 310/S, 316/L/Ti, 317/L, 321/H, 347/H |
| 400 Series Stainless Steel Grades | 409/L, 410, 416, 420, 440C, 430, 431 |
| Duplex Stainless Steel Series | 2205, 2507 |
| Super Alloy Series | 904L, 17-4PH, 17-7PH,F51, F55, 253MA, 254SMO, Alloy C276, N08367, N08926, Monel400, Inconel625, Inconel718 |
| Standard | ASTM A276, A484, A564, A581, A582, EN 10272, JIS4303, JIS G 431, JIS G 4311 and JIS G 4318 |
| Tolerance for Cold Drawn Round Bar | ||||||
| Size(mm) | Tolerance Rank | |||||
| H8 | H9 | H10 | H11 | H12 | H13 | |
| 3 | 0~-0.014 | 0~-0.025 | 0~-0.040 | 0~-0.060 | 0~-0.10 | 0~-0.14 |
| 3 ~ 6 | 0~-0.018 | 0~-0.030 | 0~-0.048 | 0~-0.075 | 0~-0.12 | 0~-0.18 |
| 6 ~ 10 | 0~-0.022 | 0~-0.036 | 0~-0.058 | 0~-0.090 | 0~-0.15 | 0~-0.22 |
| 10 ~ 18 | 0~-0.027 | 0~-0.043 | 0~-0.070 | 0~-0.11 | 0~-0.18 | 0~-0.27 |
| 18 ~ 30 | 0~-0.033 | 0~-0.052 | 0~-0.084 | 0~-0.13 | 0~-0.21 | 0~-0.33 |
| 30 ~ 50 | 0~-0.039 | 0~-0.062 | 0~-0.10 | 0~-0.16 | 0~-0.25 | 0~-0.39 |
| 50 ~ 80 | 0~-0.046 | 0~-0.074 | 0~-0.12 | 0~-0.19 | 0~-0.30 | 0~-0.46 |
Chemical Properties:
| % | Cr | Ni | C | Si | Mn | P | S | Mo | Fe |
|---|---|---|---|---|---|---|---|---|---|
| 303 | min: 17.0 max:19.0 |
min: 8.0 max: 10.0 |
0.15 max |
1.00 max |
2.0 max |
0.20 max |
0.15 min | 0.75 | balance |
Mechanical Properties:
| Grade | Tensile Strength ksi (min.) |
Yield Strength 0.2% Offset ksi (min.) |
Elongation - % in 50 mm (min.) |
Hardness (Brinell) MAX |
Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 303 | 75 | 30 | 35 | 228 |
Physical Properties:
| Denstiy lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Electrical Resistivity mW-in | Thermal Conductivity BTU/hr-ft-°F | Melting Range |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| at 68 °F | at 68 – 212°F | at 68 – 932°F | at 68 – 1450°F | at 68°F | at 212°F | at 392°F | at 752°F | at 1112°F | at 1472°F | at 68 – 212°F | |
| 0.29 | 9.2 | 10.4 | 10.9 | 28.3 | 30.7 | 33.8 |
WELDING CHARACTERISTICS
- Not generally recommended, but may be welded with some difficulty
- May be welded with Alloy 310 electrodes
- Should be annealed after welding to re-dissolve precipitated carbides
MACHINABILITY
- High machining rates can be obtained in the annealed condition with hardness in the range of 200 to 240 Brinell
- Will work harden, therefore, it should be machined at reduced surface feet per minute and heavier feeds to prevent glazing at the tool interface.
