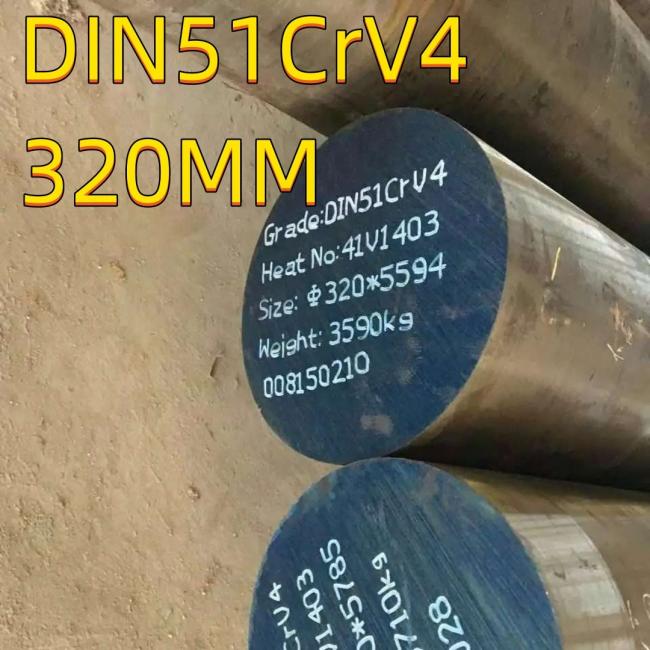

51CrV4 Spring Steel Round Bar 50CrV4 Gade 320mm Diameter 50HF Requirement
50CrV4 Gade in 320mm Diameter 50HF Requirement 51CrV4 Spring Steel Round Bar
AISI 6150 steel is chromium vanadium type spring steel. It's a similar alloy steel to 5150 steel with small, but effective, vanadium addition, to import greater hardness. AISI steel 6150 has low distortion properties and is easily heat treated. The SAE 6150 steel grade is suitable for oil hardening and tempering
.
2: 6150 Steel equivalent
| Country | Japan | BS | China | USA |
| Standard | JIS G4801 | EN 10083 | GB/T 3077 | ASTM A29 |
| Grade | SUP10 | 1.8159/51CrV4 | EN31/535A99 | 6150 |
3: 6150 steel chemical composition
| Grade | C | Si | Mn | P | S | Cr | V | Ni |
| 6150 | 0.48-0.53 | 0.15-0.35 | 0.7-0.9 | 0.035 | 0.040 | 0.8-1.1 | 0.15 | / |
| 1.8159 | 0.47-0.55 | 0.4 | 0.7-1.1 | 0.025 | 0.025 | 0.9-1.2 | 0.1-0.25 | / |
| SUP10 | 0.47-0.55 | 0.15-0.35 | 0.65-0.95 | 0.030 | 0.030 | 0.8-1.1 | 0.15-0.25 | / |
| 50CrVA | 0.47-0.54 | 0.17-0.37 | 0.5-0.8 | 0.030 | 0.030 | 0.8-1.1 | 0.1-0.2 | / |
4: 6150 steel mechanical properties
The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction,
hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be
different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.
5: 6150 steel overviews
| Size | Round | Dia 6-1200mm |
| Plate/Flat/Block | Thickness 6mm-500mm |
|
| Width 20mm-1000mm |
||
| Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
| Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
| Delivery condition | Forged; Hot rolled; Cold drawn | |
| Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
| Payment terms | T/T;L/C;/Money gram/ Paypal | |
| Trade terms | FOB; CIF; C&F; etc.. | |
| Delivery time | 30-45 days | |
| Application | 6150 spring steels are used for heavily stressed machinery parts including shafts, gears, pinions and also in hand tool components. ASTM 6150 steel is also widely in the motor vehicle industry AISI 6150 is suitable for many general engineering applications that require high tensile strength and toughness | |
6: Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed, Black surface.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.

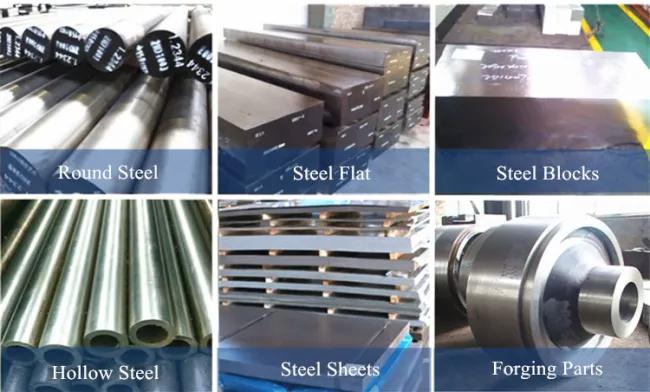

Hunan Qilu Industrial Co., Ltd has the capacity to forge round steel, steel flat, square steel, module, shaft and roller, etc.
The main specifications of the products include Φ80-1000mm forging materials and 80-1200mm square billets and which
the maximum piece weight can reach 50T.
